SiRON H052-1~H052(D)-6 Series Φ19 Multi-Head Style Stainless Steel Metal Button

Name: SiRON H052-1~H052(D)-6 Series Φ19 Multi-Head Style Stainless Steel Metal Button
Brand: SiRON
Rating: 5.0 (44 reviews)

Features

The shell of metal button switch is made of metal material, which can enhance its beauty and diversify its appearance color;
The head is dustproof and waterproof, explosion-proof and corrosion-proof and its waterproof property is lp65,Explosion-proof performance lk08;
If welding connection is adopted, it is recommended to choose an appropriate electric soldering iron to speed up the welding30W soldering iron completed within 2 seconds at 320°C:

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

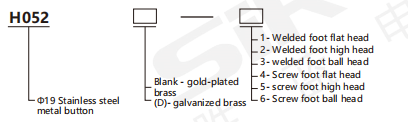

Order

Pin definition

Symbol	Diagrammatic drawing	Equivalent circuit of lamp beads

Note: A double-break slow-moving contact switch with two terminals

Technical Features

Foot material	Gold-plated brass	H052-1	H052-2	H052-3	H052-4	H052-5	H052-6
	Brass galvanized	H052(D)-1	H052(D)-2	H052(D)-3	H052(D)-4	H052(D)-5	H052(D)-6
Head style		Flat-headed type	High head type	ball head type	Flat-headed	High head type	ball head type
Operation type		self-reset
Connection type		Wire connector (welding pin)			Connection post (screw thread foot)
Switch rating		DC:2A/36V;AC:5A/250V
The environment temperature		-40℃~+80℃
Contact resistance		≤50MΩ
Insulation resistance		≥1000MΩ
Dielectnc strength		AC1780V
Mechanical/electrical life		≥1000,000time/≥50,000time
Switch structure		Double-breakpoint slow-moving contacts
Switch combination		1NO
Surface explosion-proof grade		IK08(For metal materials)
Operating pressure		3~5N
Operating limits		2.5MM
Nut torque		5~14N
