H051
SiRON
8538900000
Order

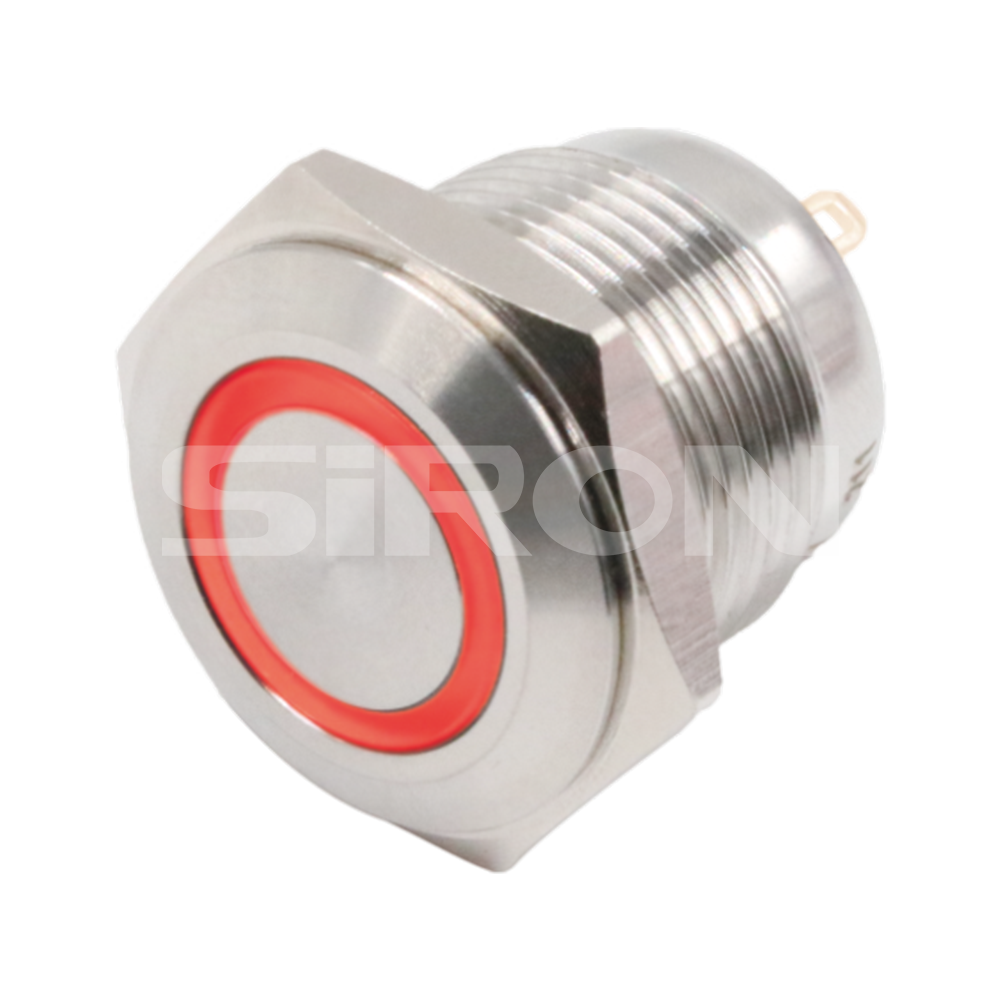

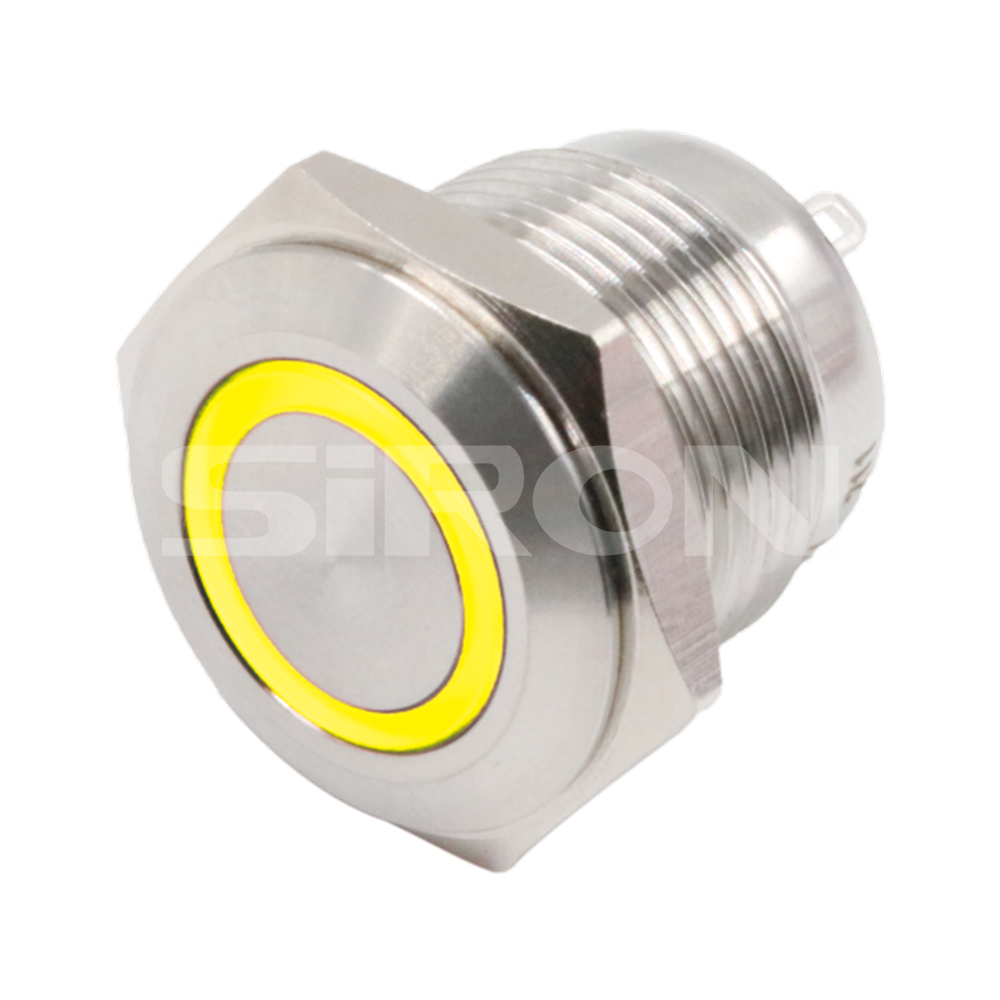

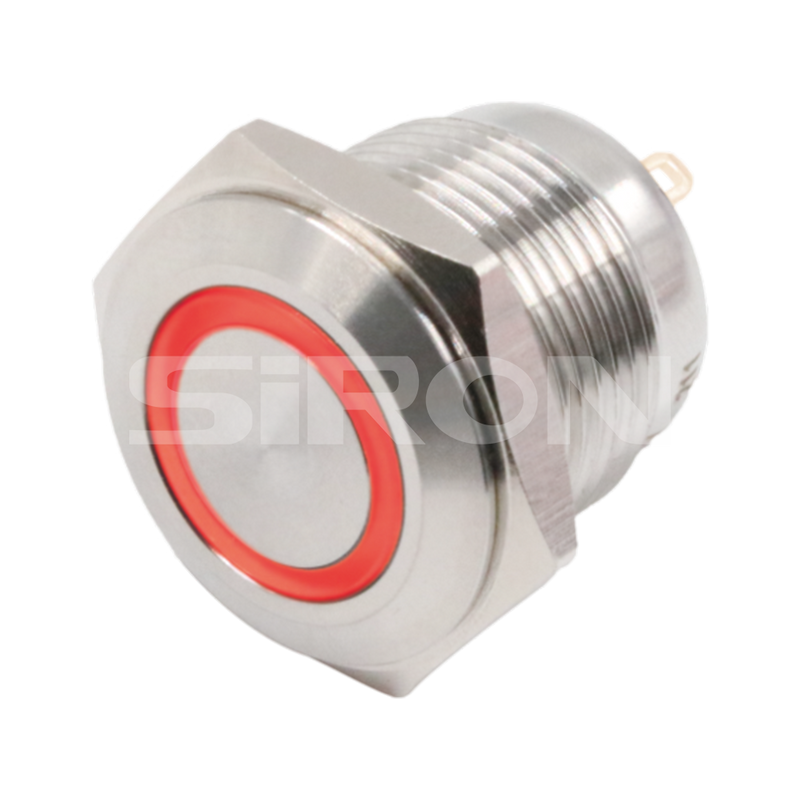

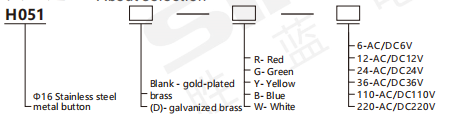

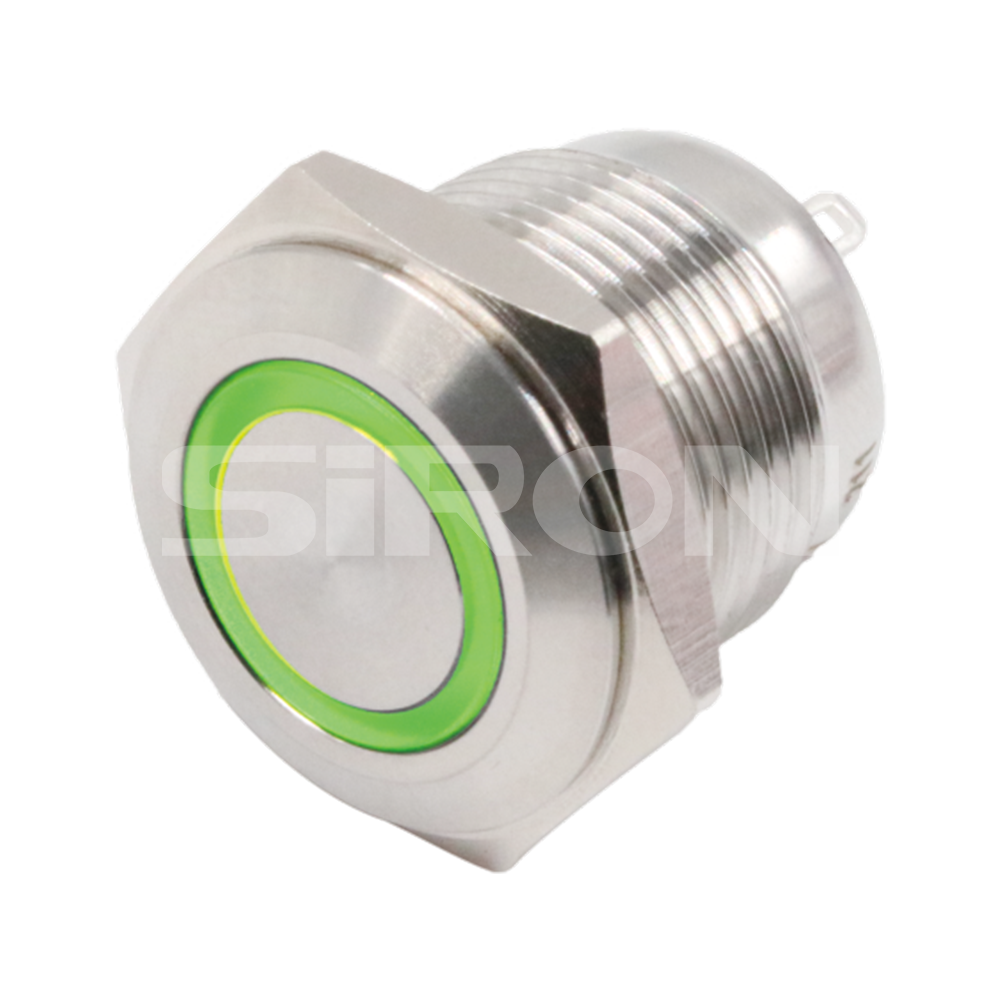

Note: H051-R-24 indicates a Φ16 stainless steel metal button with a brass gold-plated red light and a 24V button.
H051(D-R-24) indicates a Φ16 stainless steel metal button, with the solder joint material being brass and galvanized, and a red light on for a 24V button.
Pin definition
| Symbol | diagrammatic drawing | Equivalent circuit of lamp beads | |
 | single color light |  | |
| Note: A double-break slow-moving contact switch with two terminals | Note: It adopts LED beads that are compatible with both AC and DC. There is no distinction between positive and negative poles at the terminal blocks. The beads are equipped with built-in protection resistors and do not require external connections. | ||
Technical Features
| Foot material | Gold-plated brass | H051-R/G/Y/B/W-6/12/24/36/110/220 |
| Brass galvanized | H051(D)-R/G/Y/B/W-6/12/24/36/110/220 | |
| Operation type | self-reset | |
| Connection type | Wiring plug (soldering pin) | |
| Head style | Flat circular ring-shaped strip light | |
| Switch rating | DC:2A/36V;AC:5A/250V | |
| The environment temperature | -40℃~+80℃ | |
| Contact resistance | ≤50MΩ | |
| Insulation resistance | ≥1000MΩ | |
| Dielectric strength | AC1780V | |
| Mechanical life | ≥1000,000time/≥50,000time | |
| Switch structure | Double-breakpoint slow-moving contacts | |
| Switch combination | 1NO | |
| Operating pressure | 3～5N | |
| Operating limits | 2.5MM | |
| Nut torque | 5～14N | |
LEDlights | Lamp bead types | Bidirectional LED beads (AC/DC compatible) |
| The rated voltage | 6V/12V/24V/36V/110/220V | |
| Rated current | about 20mA | |
| life | 50000 Hours (reference value) | |
