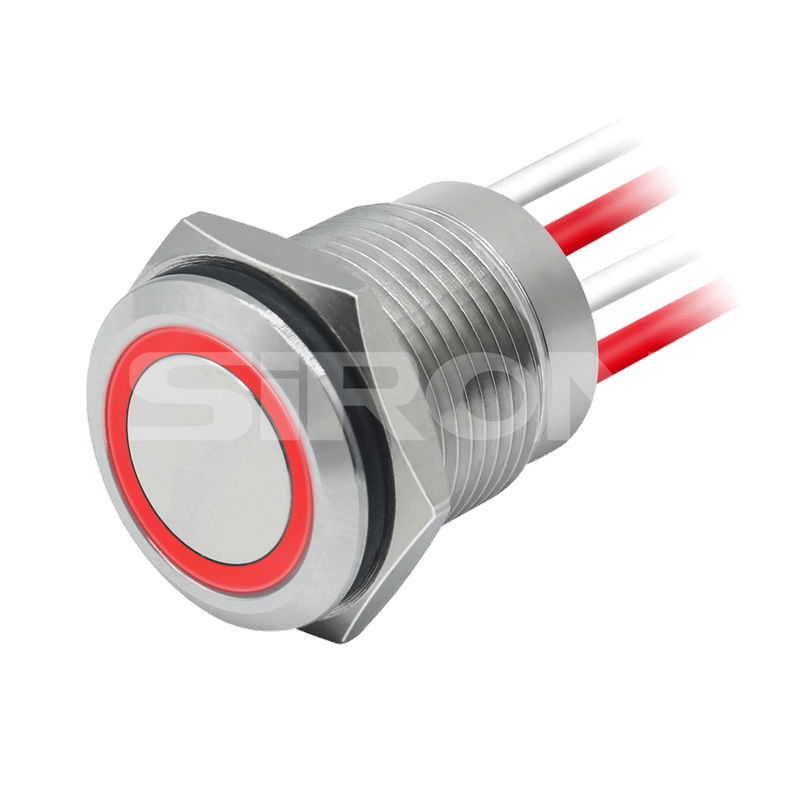

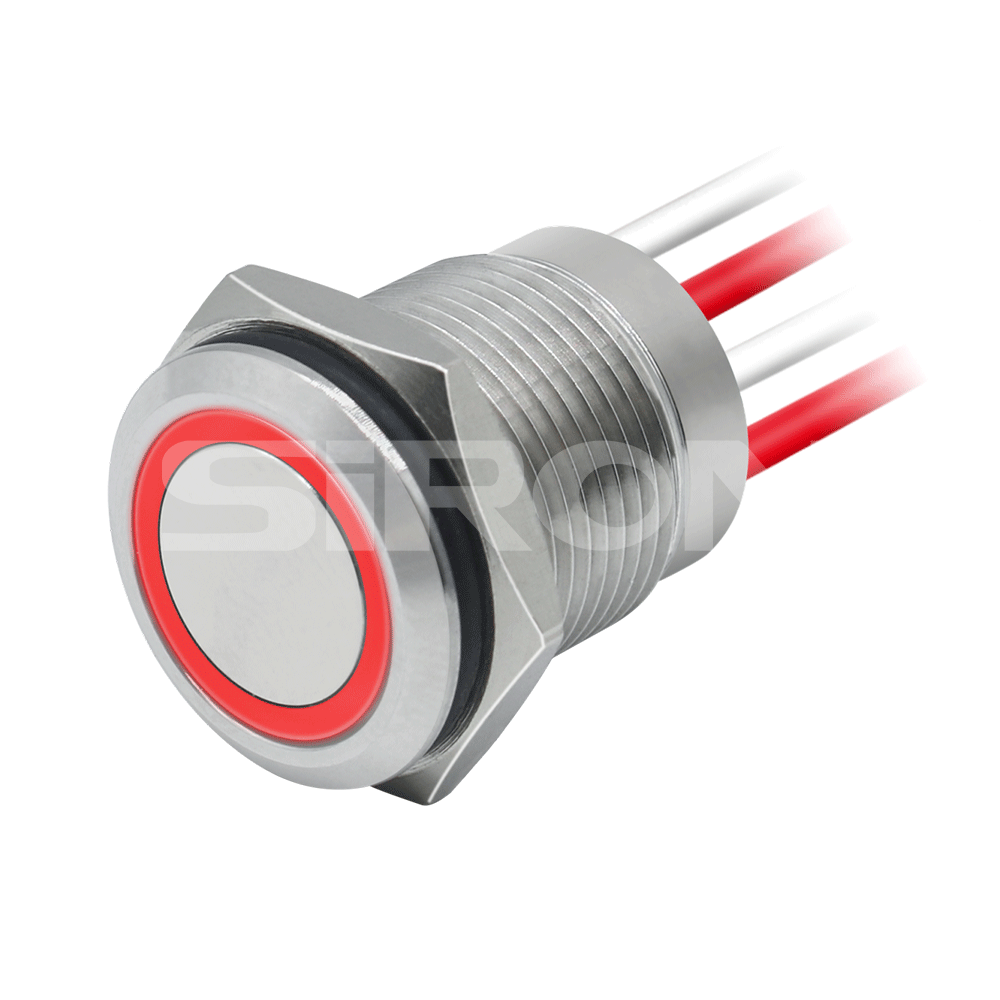

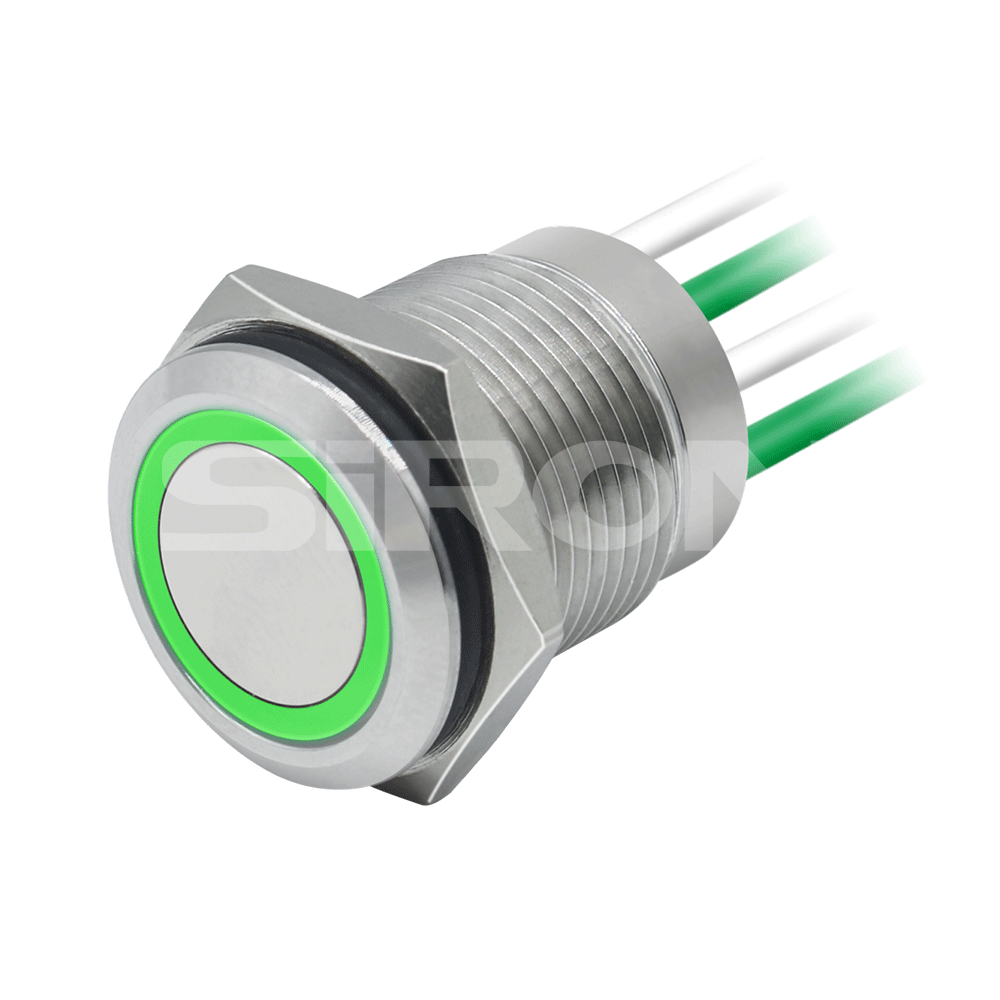

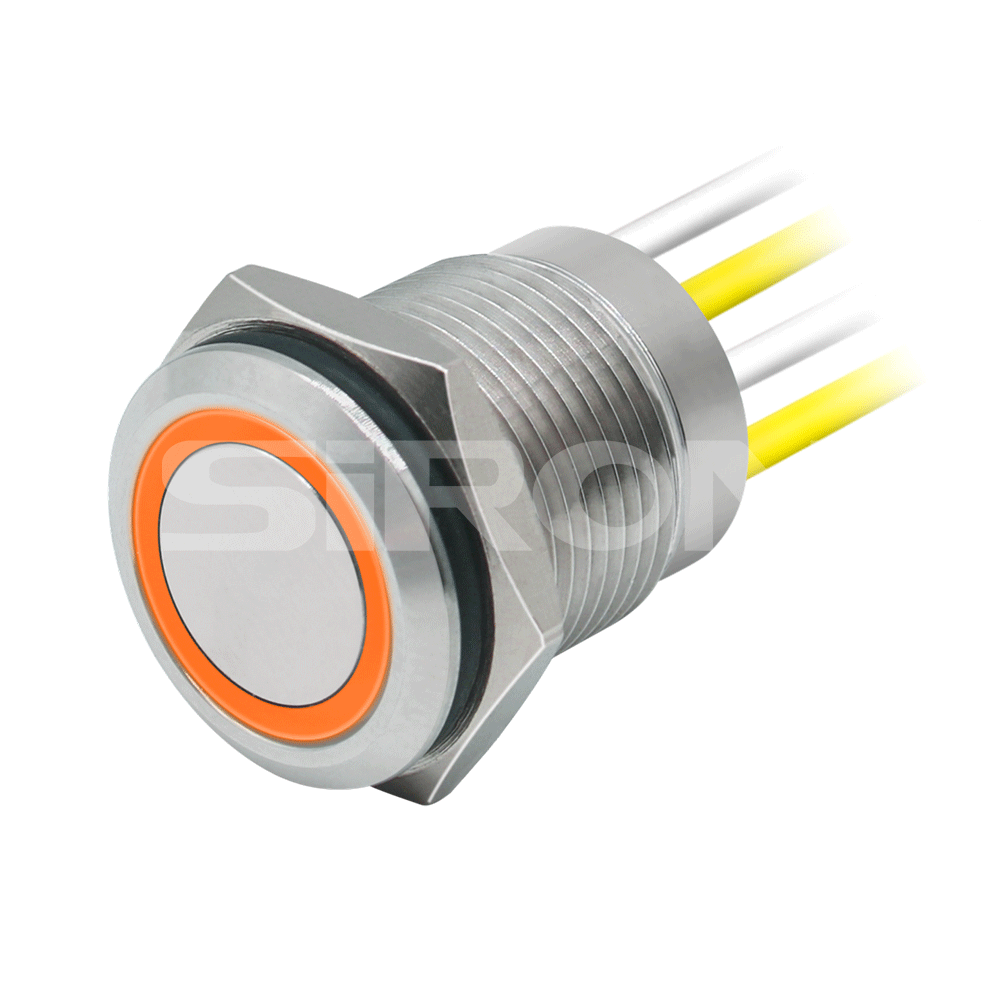

H050(X)
SiRON
8538900000
Order

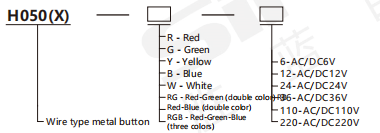

Note: H050(X)-1R-24 represents a spherical button with a red light on 24V, and H050(X)-2R-24 represents a flat-headed button with a red light on 24V.
Type selection reference

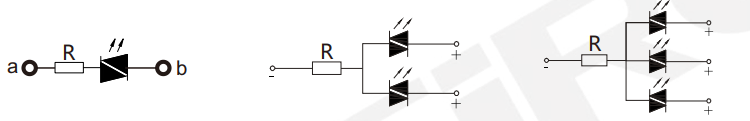

| symbol | Diagrammatic drawing | Equivalent circuit of lamp beads | ||
| 1、2——NO |  | Single-color light emission, dual-color light emission, three-color light emission | ||
 | ||||
| Note: It adopts LED beads that are compatible with both AC and DC. There is no distinction between positive and negative poles at the terminal blocks. The beads are equipped with built-in protection resistors and do not require external connections. The dual-color light emission is for the common negative electrode. Other colors and the common positive electrode can be customized according to customer requirements. For customization, please contact the salesperson. | ||||
| Note: A single-breakpoint slow-moving contact switch with two terminals | ||||
Technical Features
| Model | H050(X)-R/G/Y/B/W/RG/RB/RGB-6/12/24/36/110/220 | |
| Operation type | self-reset | |
| Connection type | Wire type | |
| Head style | Flat circular ring-shaped strip light | |
| Electrical parameter | Ith:50mA;Ui:12V/DC | |
| The environment temperature | -25℃~+65℃ | |
| Contact resistance | ≤50MΩ | |
| Insulation resistance | ≥100MΩ | |
| Dielectric strength | AC250V,1min,No flickering or breakdown | |
| Electrical life | ≥50,000time | |
| Switch combination | 1NO | |
| Operating limits | about 0 . 5MM | |
| Nut torque | about 0 . 6Nm | |
| Key material | PC/ Stainless steel PC/ Brass | |
| Appearance material | Stainless steel; Brass | |
LED lights | Lamp bead types | Hours (reference value) |
| The rated voltage | 6V/12V/24V/36V/110/220V | |
| Rated current | ≤20mA | |
| life | 50000Hours (reference value) | |
