SiRON H050-1~H050(D)-3 Series Φ12 With Light Of Stainless Steel Metal Button

Name: SiRON H050-1~H050(D)-3 Series Φ12 With Light Of Stainless Steel Metal Button
Brand: SiRON
Rating: 5.0 (66 reviews)

Features

The shell of metal button switch is made of metal material, which can enhance its beauty and diversify its appearance color;
The head is dustproof and waterproof, explosion-proof and corrosion-proof and its waterproof property is lp65,Explosion-proof performance lk08;
If welding connection is adopted, it is recommended to choose an appropriate electric soldering iron to speed up the welding30W soldering iron completed within 2 seconds at 320°C:

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
H050-1~H050(D)-3
Brand:
SiRON
Code:
8538900000

H050-1~H050(D)-3 Series Φ12 Indicator Light self-reset Button gold-plated brass button galvanized brass button Steel Metal Button Light

Product Description

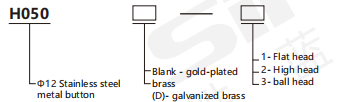

Order

H050-R-24 indicates a 12mm stainless steel metal button with a brass gold-plated red light and a 24V button. H050(D)-R-24 indicates a 12mm stainless steel metal button with a brass galvanized toe material and a red light on for a 24V button.

Pin definition

Symbol	diagrammatic drawing	Equivalent circuit of lamp beads

Note: A double-break slow-moving contact switch with two terminals

Technical Features

Foot material	Gold-plated brass	H050-1	H050-2	H050-3
	Brass galvanized	H050(D)-1	H050(D)-2	H050(D)-3
Head style		Flat-headed type	High-headed type	Spherical type
Operation type		Self-reset
Connection type		Wire connector (welding pin)
Switch rating		DC:2A/36V;AC:5A/250V
The environment temperature		-40℃~+80℃
Contact/insulation resistance		≤50MΩ/≥1000MΩ
Dielectric strength		AC1780V
Mechanical/electrical life		≥1000,000time/≥50,000time
Switch structure		Double-breakpoint slow-moving contacts
Switch combination		1NO
Operating pressure		3～5N
Operating limits		2.5MM
Nut torque		5～14N
