SiRON H038(X) Series Φ25 Stainless Steel Indicator Light

Name: SiRON H038(X) Series Φ25 Stainless Steel Indicator Light
Brand: SiRON
Rating: 5.0 (50 reviews)

Features

The shell of metal button switch is made of metal material, which can enhance its beauty and diversify its appearance color;
The head is dustproof and waterproof, explosion-proof and corrosion-proof and its waterproof property is lp65,Explosion-proof performance lk08;
If welding connection is adopted, it is recommended to choose an appropriate electric soldering iron to speed up the welding30W soldering iron completed within 2 seconds at 320°C:

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

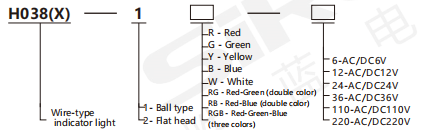

72636db3455f6920a8bebe627e0a5b06

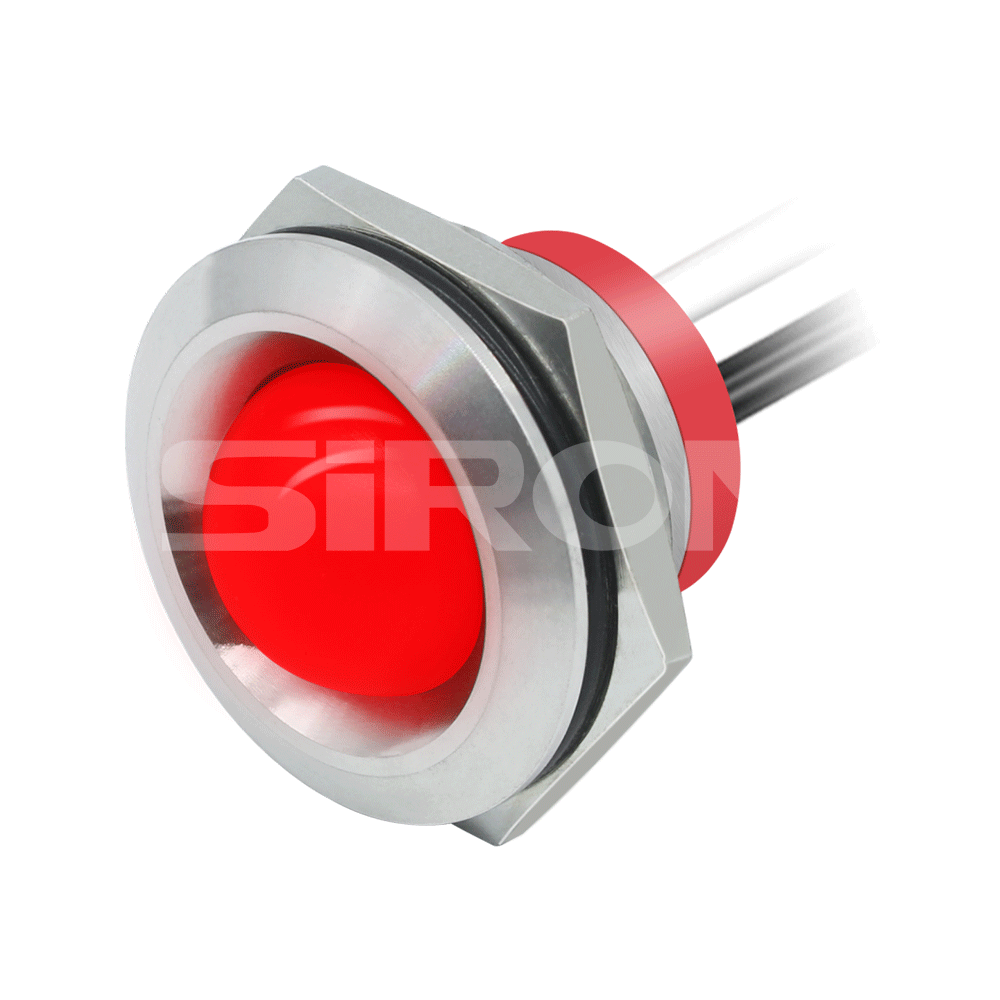

Note: H038(X)-1R-24 represents a spherical button with a red light on 24V, and H038(X)-2R-24 represents a flat-headed button with a red light on 24V.

Type selection reference

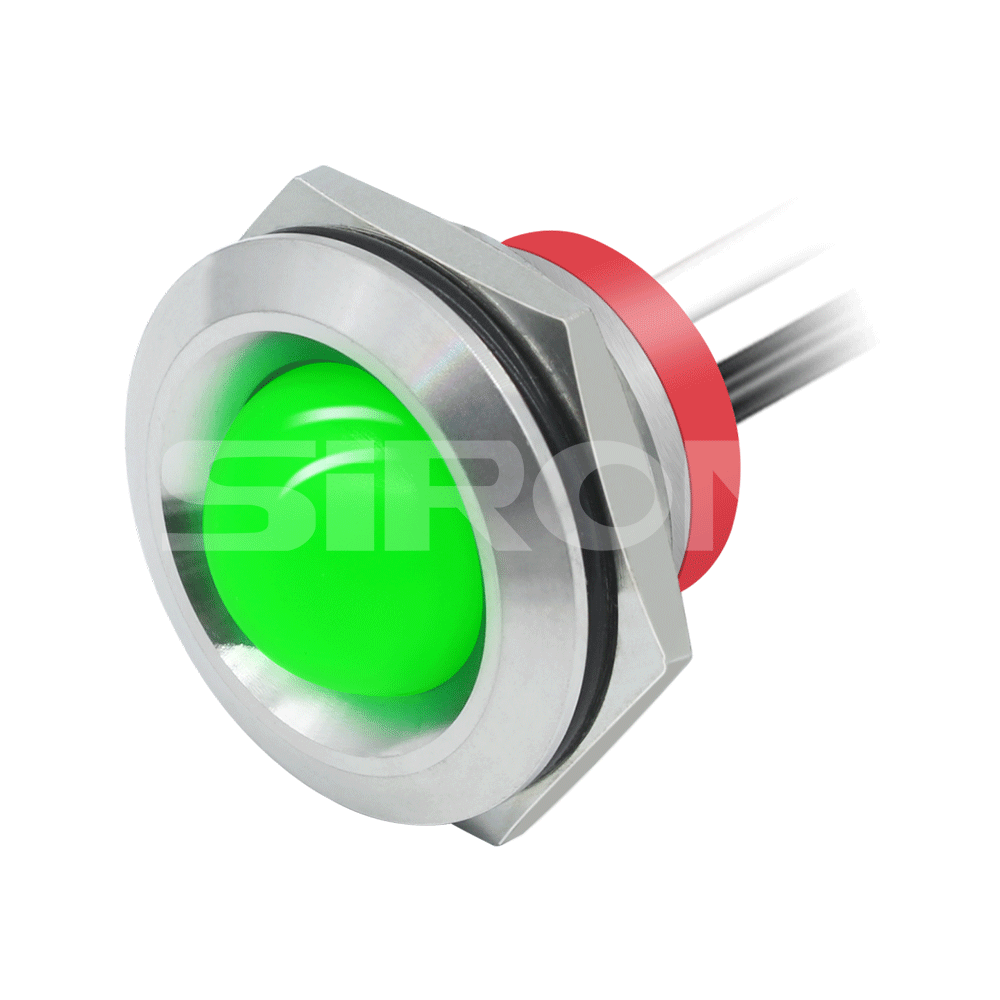

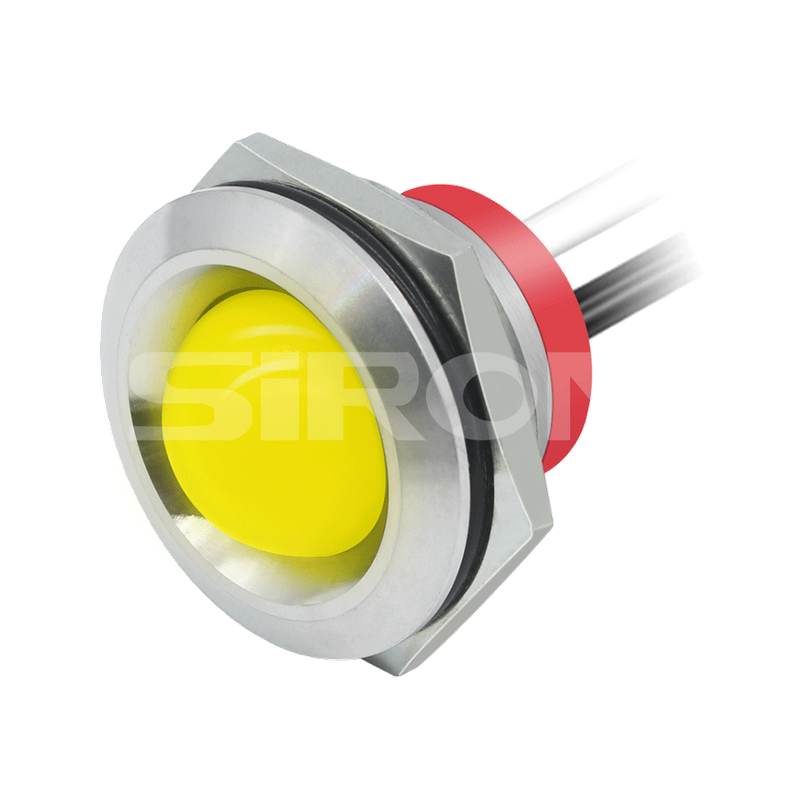

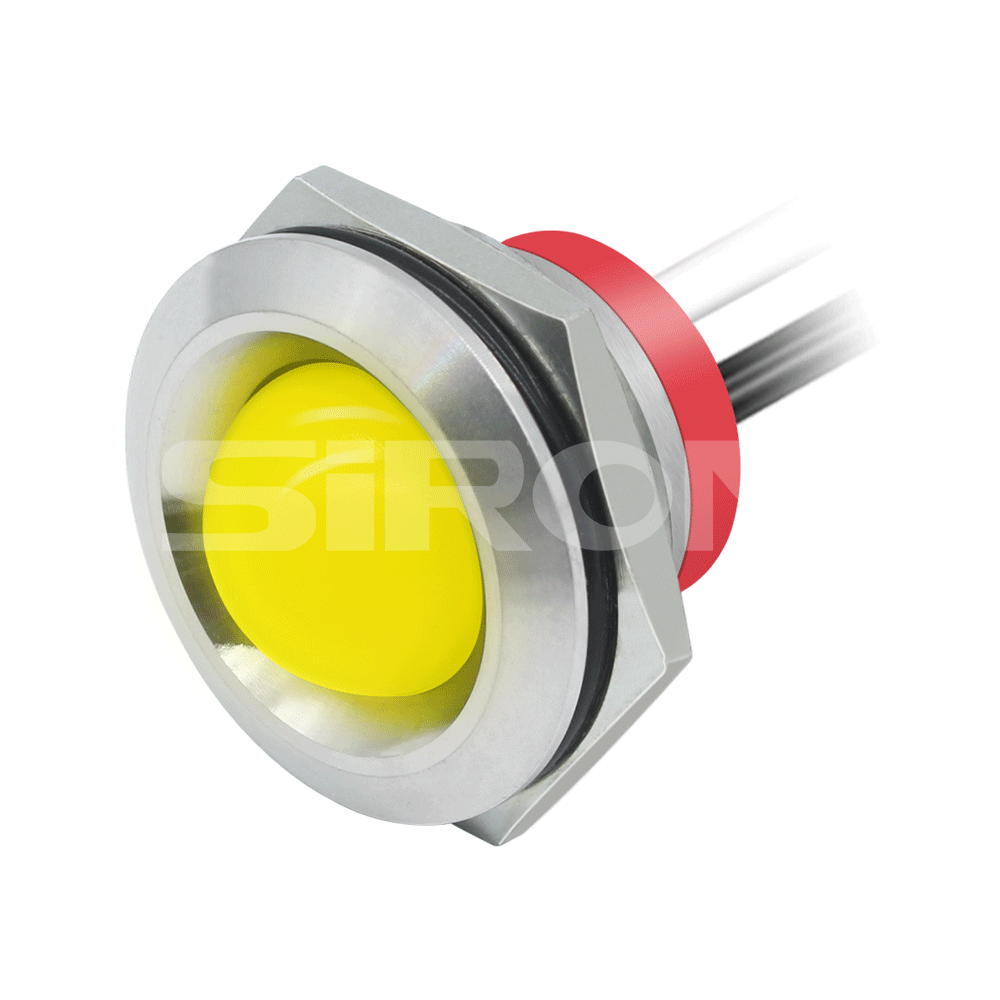

Spherical indicator light	H038(X)-1R/1G/1Y/1B/1W/1RG/1RB/1RGB-12/24/36/110/220

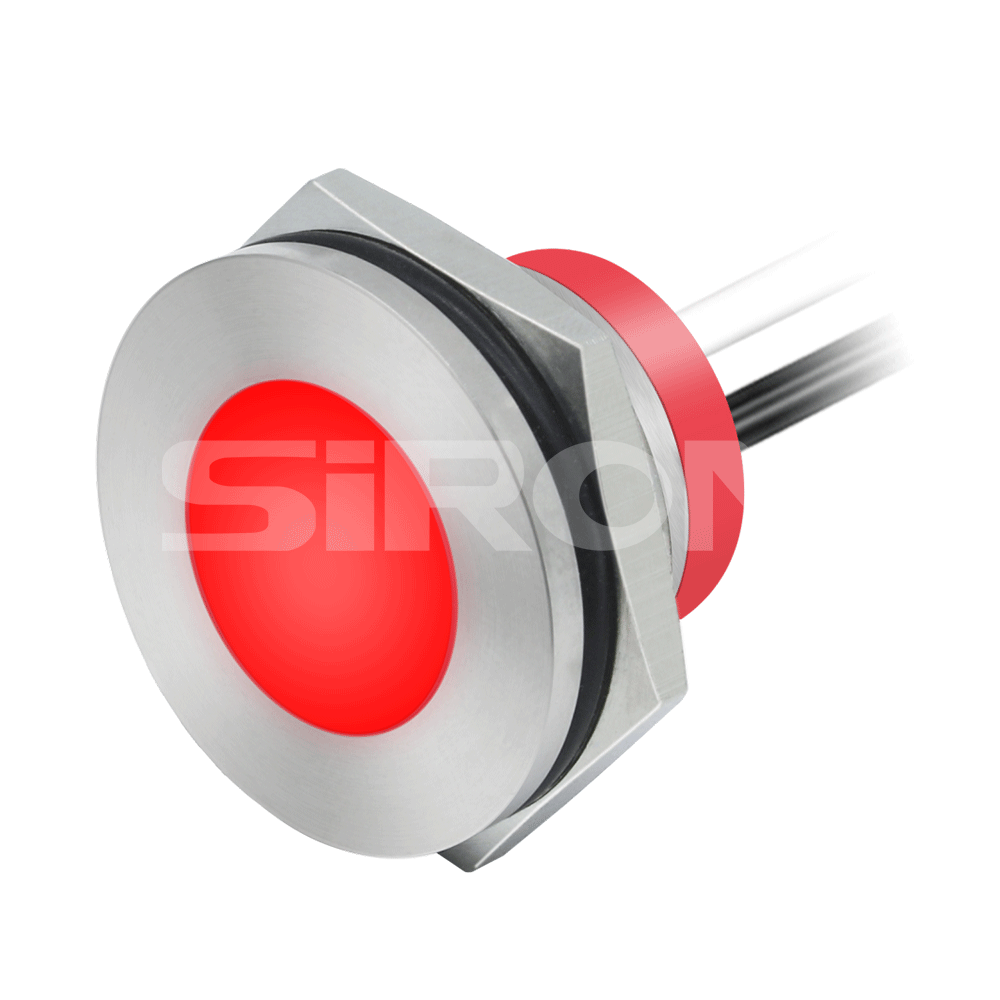

Flat head indicator light	H038(X)-2R/2G/2Y/2B/2W/2RG/2RB/2RGB-12/24/36/110/220

Technical Features

With lamp voltage	6V	12V	24V	36V	110V	220V
Connection type	Wire-type
Rated current	≤20mA
The environment temperature	-25℃~+65℃
Insulation resistance	≥100MΩ
Dielectric strength	AC2500V,1min,No flickering or breakdown
Lamp bead types	Bidirectional LED beads (AC/DC compatible)
Life span	50000Hours (reference value)
Material	Shell: brass/stainless steel; Base: PA6
Working voltage	5-7VDC	10.8-13.2VDC	20.5-26.4VDC	28-40VDC	99-121VDC	200-255VDC
Working current	7-<20mA	7-<20mA	7-<20mA	6-<20mA	6mA	1.8mA-3mA
