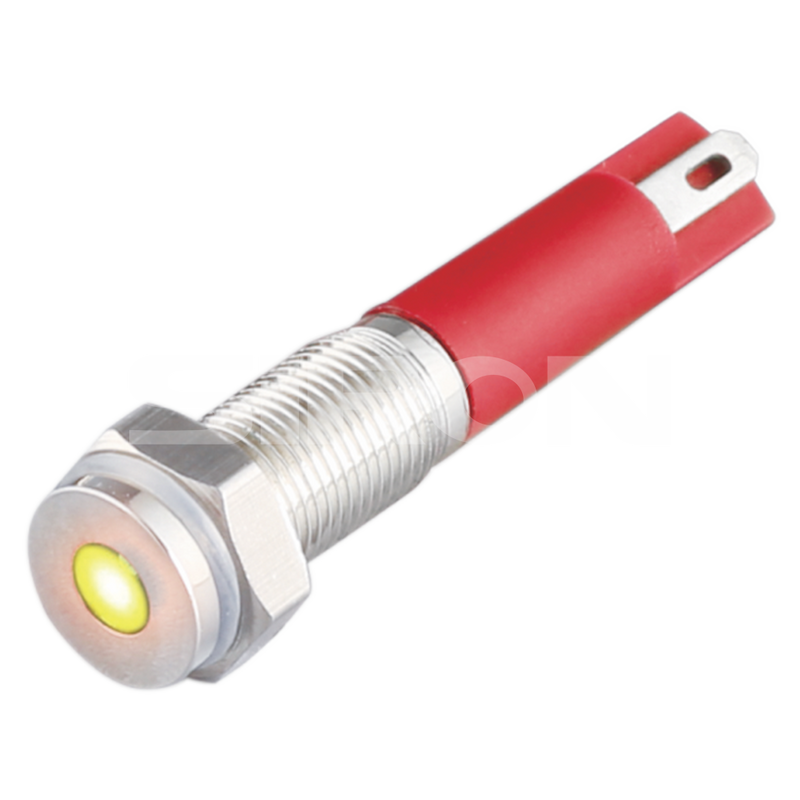

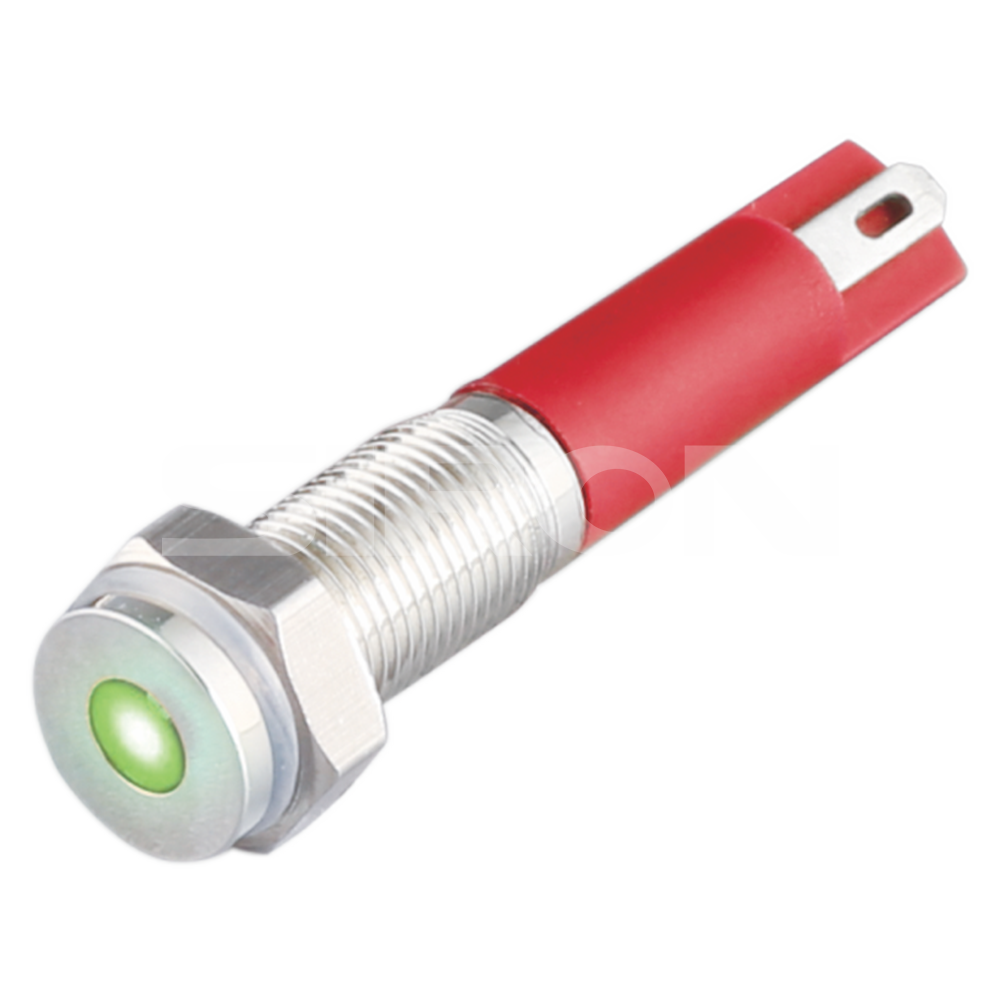

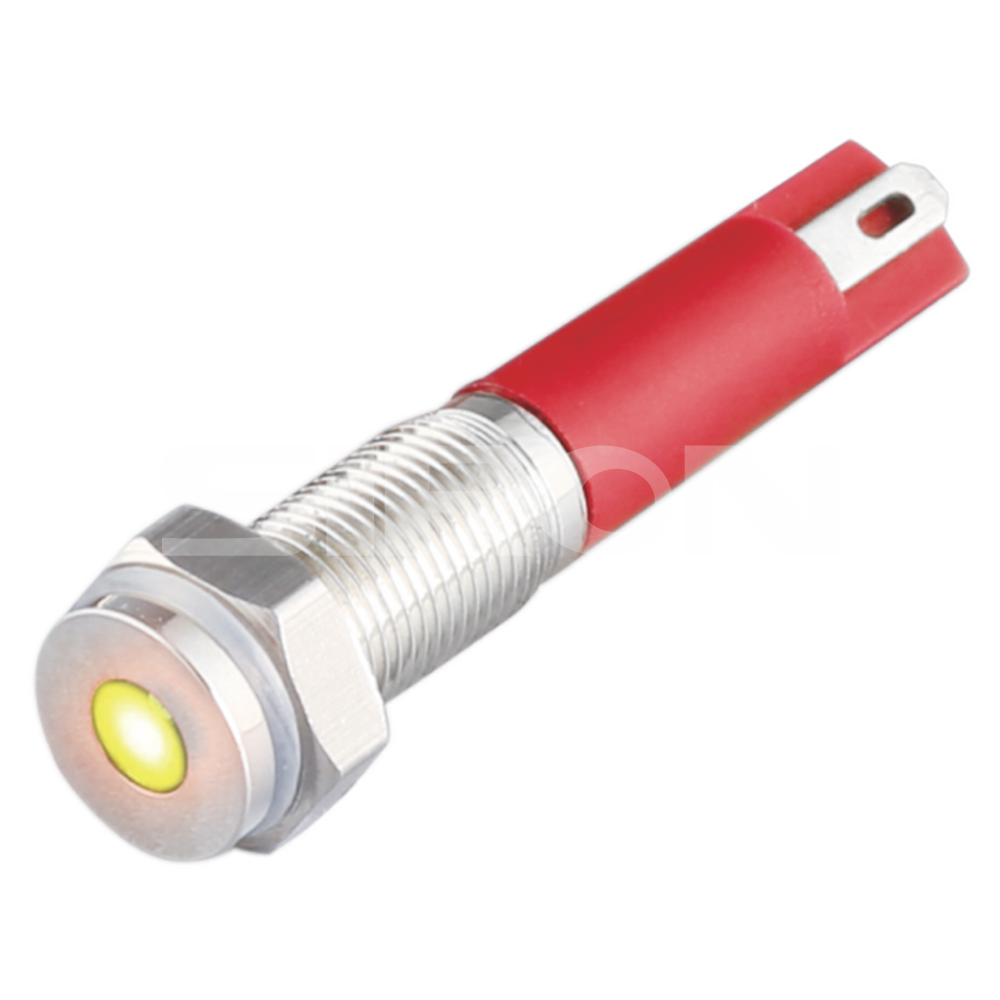

SiRON H030/H031 Series Φ6 Stainless Steel Indicator Light

Name: SiRON H030/H031 Series Φ6 Stainless Steel Indicator Light
Brand: SiRON
Rating: 5.0 (55 reviews)

Features

Metal lamp housing is made of metal, which can enhance its beauty and diversify its appearance color;
The head is dustproof and waterproof, explosion-proof and corrosion-proof, and its waterproof property is lp67 Explosion-proof performance lk08:
If welding connection is adopted, it is recommended to choose an appropriate electric soldering iron to speed up the welding 30W soldering iron completed within 2 seconds at 320'C;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
H030/H031
Brand:
SiRON
Code:
8538900000

H030/H031 Series Φ6 Indicator Light Spherical indicator light Flat head indicator light

Product Description

Order

Note: H030-R-24 indicates a 24V button with a spherical solder joint made of brass, gold plating and a red light.H031 (D)-R-24 indicates a flat-head, soldered toe material, brass, galvanized, and red light 24V button.

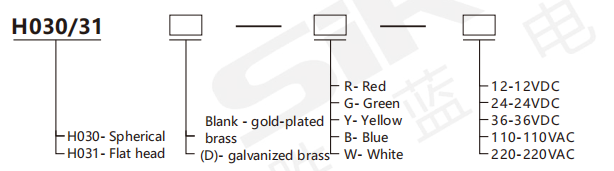

Type selection reference

Spherical indicator light	H030/H030(D)-R/G/Y/B/W-12/24/36/110/220
Flat head indicator light	H031/H031(D)-R/G/Y/B/W-12/24/36/110/220

Technical Features

Foot material	Gold-plated brass	H030 H031
	brass plated zinc	H030(D)H031(D)
With lamp voltage		12V	24V	36V	110V	220V
Connection type		Wiring plug (soldering pin）
Rated current		about 20mA
The environment temperature		-40℃~+85℃
Insulation resistance		≥100MΩ
Dielectric strength		AC1000V
Lamp bead types		Bidirectional LED beads (AC/DC compatible)
Working voltage		10.8-13.2VDC	20.5-26.4VDC	28-40VDC	99-121VDC	200-255VDC
Working current		7-<20mA	7-<20mA	6-<20mA	6mA	1.8mA-3mA
