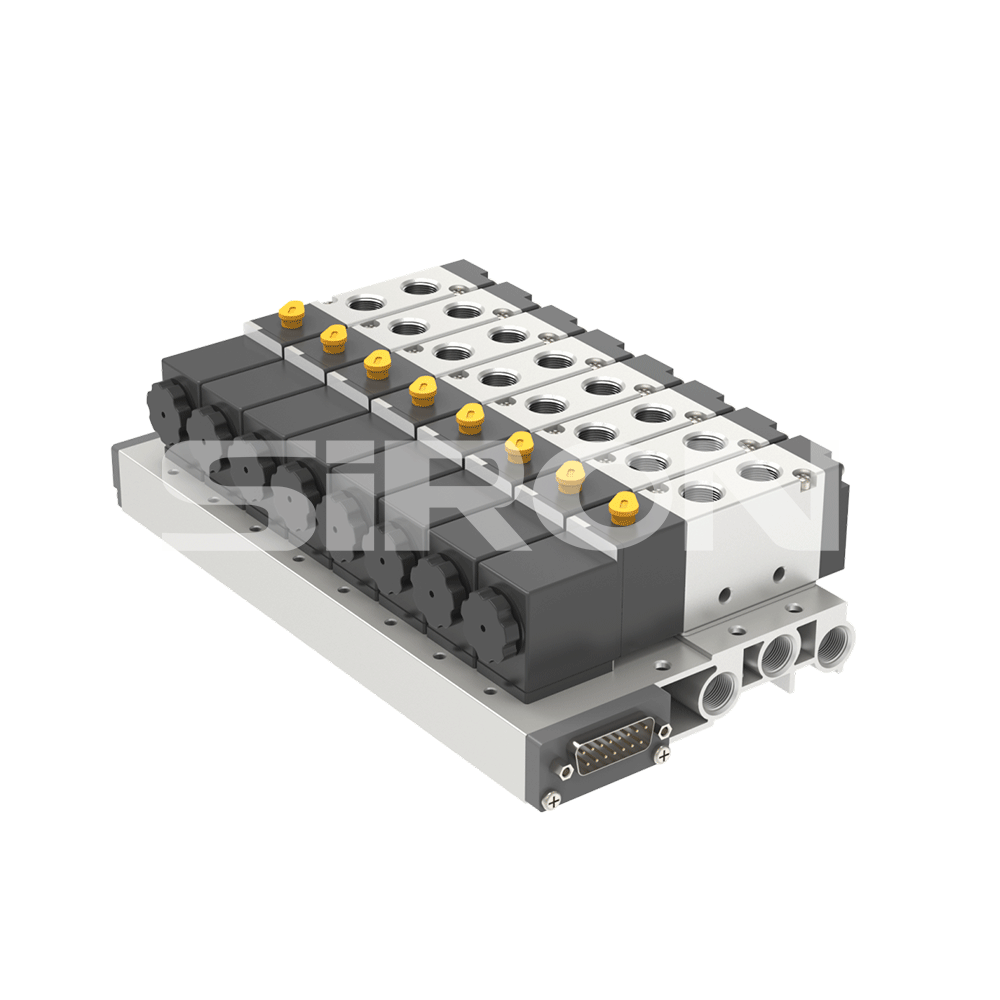

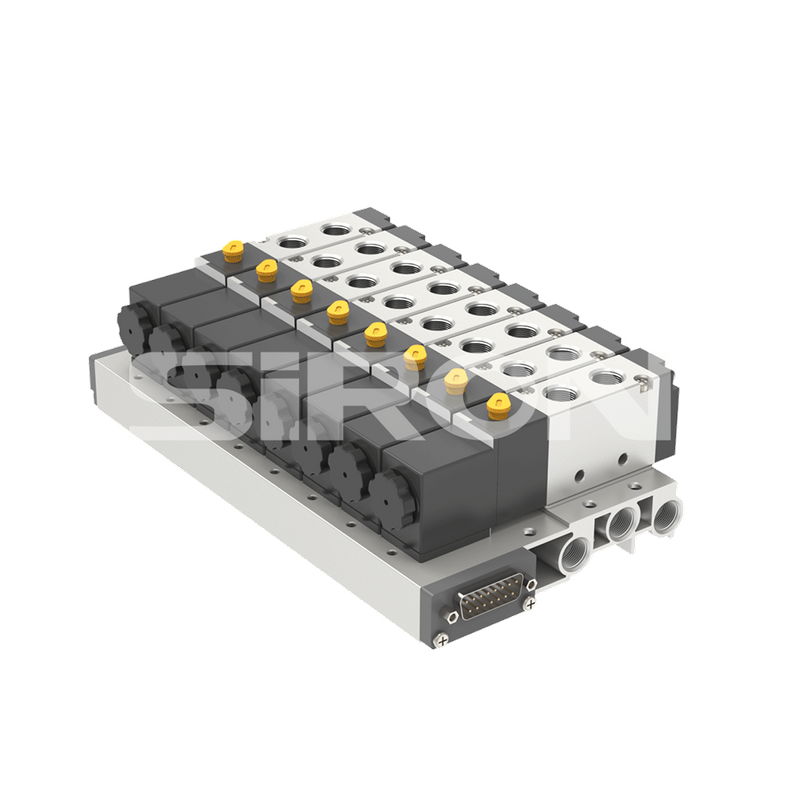

SiRON FN1 Series (pin Type) Integrated Valve Assembly

Name: SiRON FN1 Series (pin Type) Integrated Valve Assembly
Brand: SiRON
Rating: 5.0 (35 reviews)

Features

Superior performance and wide application,
Not easy to make seal aging damage;
The pipeline is simple, easy to repair and maintain.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
FN1
Brand:
SiRON
Code:
8538900000

Integrated Valve Assembly pin type Assembly Two-position five-way single electronic control Assembly Three-way five-way medium voltage Assembly

Product Description

Order

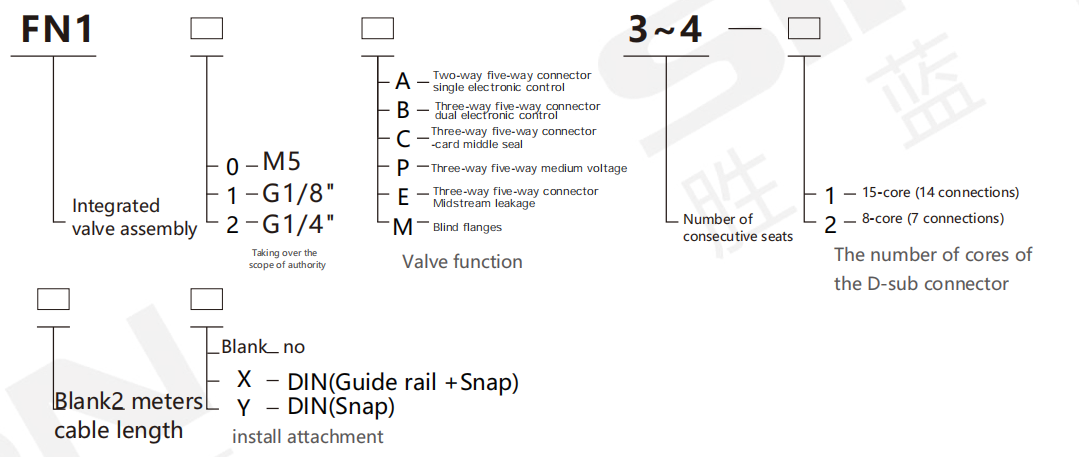

c7b125bdf4cbf0171b821a54008413bc

Selection example: FN10-A8-1 indicates: FN1 series integrated valve group, with a connecting pipe diameter of M5 and a valve function of two positions and five positions

The single-pass electronic control system has 8 connected sockets, 15 connector cores, a wire length of 2 meters, and no installation accessories.
FN11-B3-2X indicates: The FN1 series integrated valve assembly has a connecting pipe diameter of G1/8" and a valve function of two positions and five positions
It features dual electronic control, with a total of 3 connected seats, 8 connector cores, a wire length of 2 meters, and DIN installation accessories (rail + clip).
FN12-A2B2C1-2Y(Figure 1) indicates: FN1 series integrated valve group, with a connecting pipe diameter of G1/4"
The valve function is two-position five-way single electric control, with 2 consecutive seats. It is also two-position five-way double electric control, with 2 consecutive seats.
Three-position five-way middle cover, with 3 connected seats, 8 connector cores, 2 meters of wire length, and installation accessories DIN(snap-on).

Specifications

model	Two five-Way single elechnic control	FN10-A	FN11-A	FN12-A
	Two five-way double alechic oontrol	FN10-B	FN11-B	FN12-B
Effective cross-sectional area		5.5(CV=0.31)	12(CV=0.67)	16(CV=0.89)
model	Three and five zhong feng	FN10-C	FN11-C	FN12-C
	Three and five passes to leak	FN10-P	FN11-P	FN12-P
	Three and five medium voltage	FN10-E	FN11-E	FN12-E
Effective cross-sectional area		5.5(CV=0.28)	12(CV=0.50)	16(CV=0.67)
Working pressure(Mpa)		0.15~0.8
To take over the diameter		M5	G1/8"	G1/4"
Working medium		Air filtered through a 40mm filter element
Action type		Reposition of gas
Reset type		Reposition of gas
lubrication		without
Maximum pressure(Mpa)		1.2
Operating temperature(℃)		- 2 0 ~ 7 0 ( No ice )
Working voltage		DC24V
Volitagerange		-15%~10%
Power consumption		DC:28W;AC:3.0VA		DC:3.0W;AC:4.0VA
Insulation class		Grade F
Proleclion level		IP65
Maximum frequency of action		two：Five times per second；three：Three times per second
Excitation time(S)		<0.05
