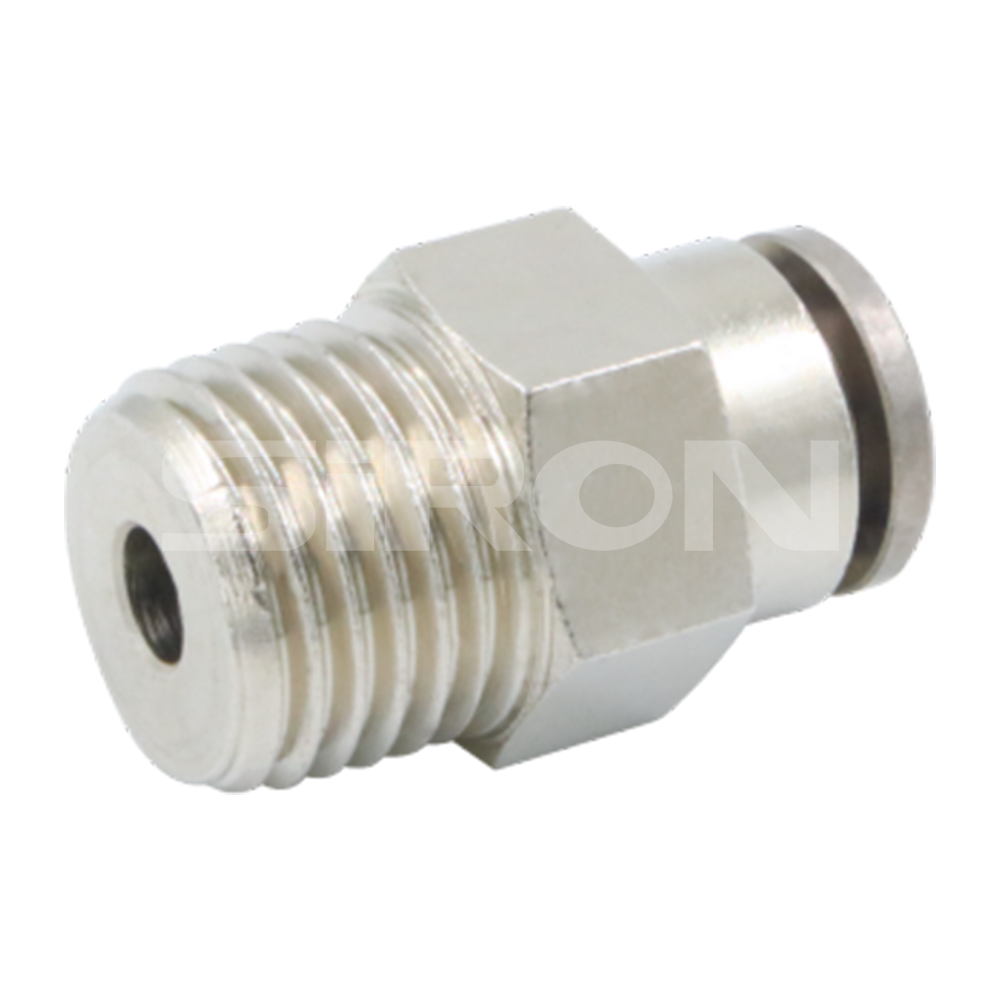

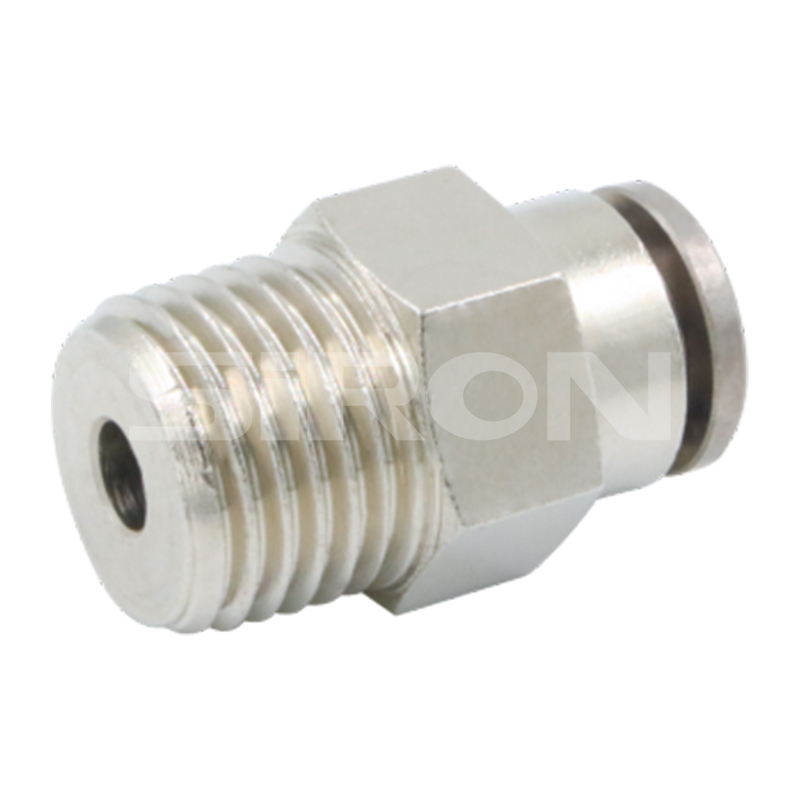

SiRON F30 Series All Copper Thread Through Copper Joint

Features
  • Quick Connector
  • Plastic body Polybutylene terephthalate
  • The pipeline is simple, easy to repair and maintain.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • F30

  • SiRON

  • 8538900000

All Copper Thread Through Copper Joint F30 Series Connector Metal joint
Product Description

Specifications

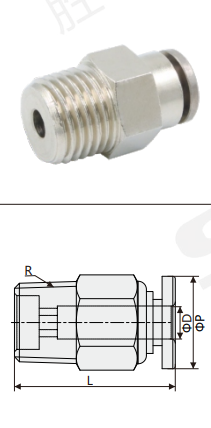

All copper thread through Model (mm)Dimensions
φD R L ΦP
2add94f9-9fa9-430c-acf6-b8caebf2b8fe F300-04-M5 4 M5×0.8 20.2 8
F300-04-01 R1/8 19 8.5
F300-04-02 R1/4 20.5 8.5
F300-06-M5 6 M5×0.8 24.7 12
F300-06-01 R1/8 24.7 12
F300-06-02 R1/4 24.5 12
F300-06-03 R3/8 23 12
F300-06-04 R1/2 26 12
F300-08-01 8 R1/8 28.7 14
F300-08-02 R1/4 27.7 14
F300-08-03 R3/8 22.7 14
F300-08-04 R1/2 26 14
F300-10-01 10 R1/8 31 16
F300-10-02 R1/4 33 16
F300-10-03 R3/8 27 17
F300-10-04 R1/2 26 21
F300-12-02 12 R1/4 35 19
F300-12-03 R3/8 31.7 19
F300-12-04 R1/2 26.2 21
