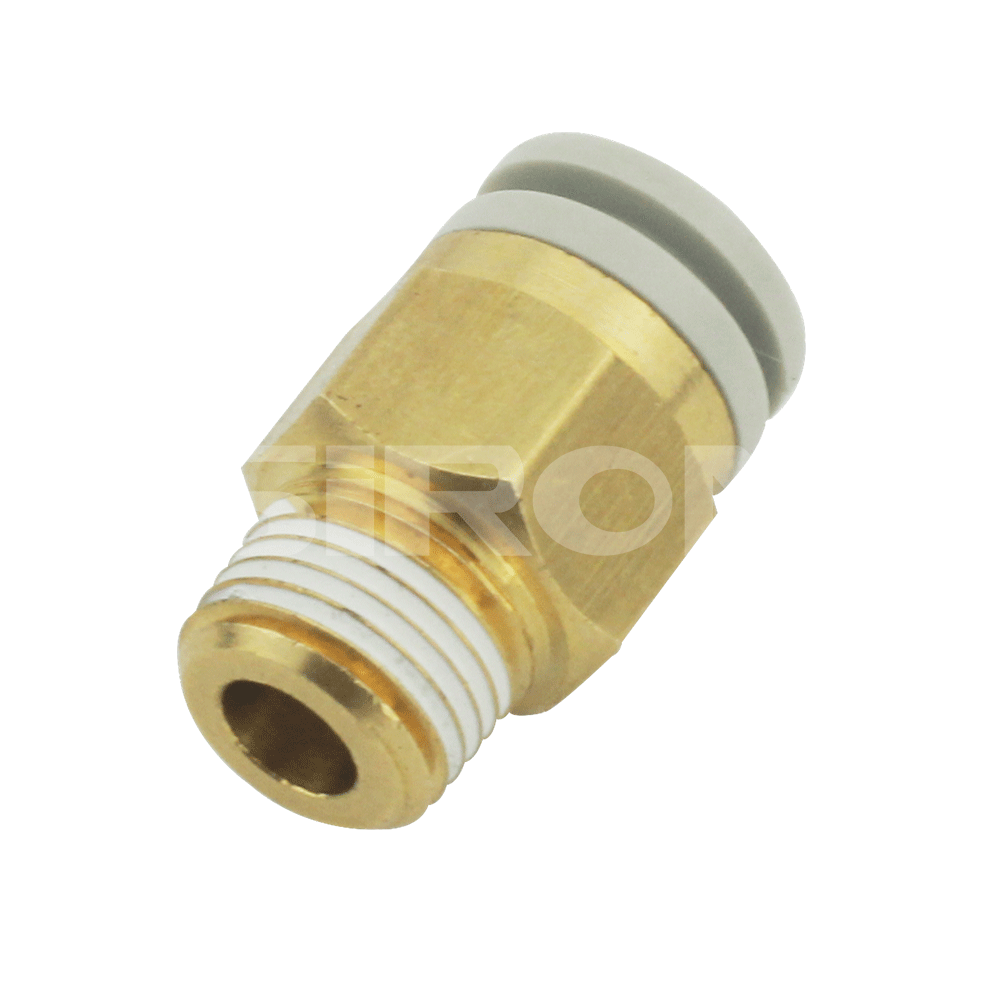

SiRON F20 Series Outer Screw Direct Head Quick Connector

Features
  • Quick Connector
  • Plastic body Polybutylene terephthalate
  • The pipeline is simple, easy to repair and maintain.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • F20

  • SiRON

  • 8538900000

Direct Head Quick Connector Outer screw direct head F20 Series Connector Metal joint
Product Description

Specifications

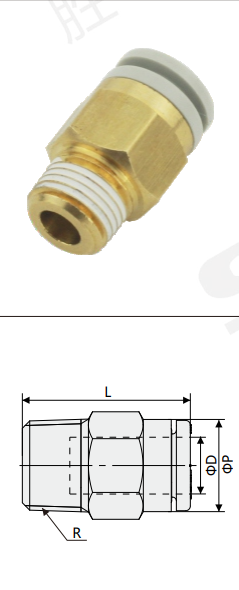

Outer screw direct head Model (mm)Dimensions
8b3b7172-85dd-41fe-8bc6-0ce367cd8524 φD R L ΦP
F200-04-M5 4 M5×0.8 17 7.9
F200-04-M6 M6×1.0 18 7.9
F200-04-01 R1/8 22 9.9
F200-04-02 R1/4 19.5 9.9
F200-06-M5 6 M5×0.8 17.8 9.9
F200-06-M6 M6×1.0 19 9.9
F200-06-01 R1/8 22.5 11.9
F200-06-02 R1/4 23 11.9
F200-06-03 R3/8 22 11.9
F200-08-01 8 R1/8 28 13.8
F200-08-02 R1/4 26.5 13.8
F200-08-03 R3/8 22 13.8
F200-10-01 10 R1/8 30 16.9
F200-10-02 R1/4 33.5 16.9
F200-10-03 R3/8 29 16.9
F200-10-04 R1/2 27 16.9
     F200-12-02 12 R1/4 34.5 18.9
F200-12-03 R3/8 30 18.9
F200-12-04 R1/2 30 18.9
F200-16-02 16 R1/4 39.5 25.7
F200-16-03 R3/8 39.5 25.7
F200-16-04 R1/2 35.5 25.7
