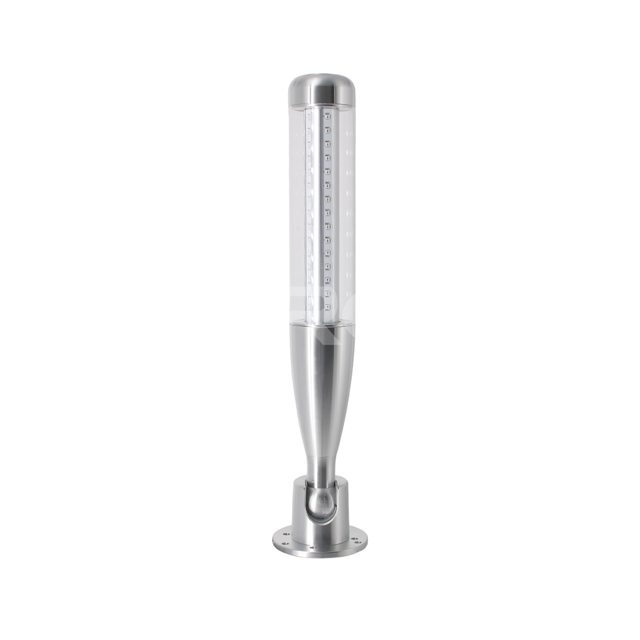

The High‑Brightness D022‑1 Signal Tower Light from SiRON Electrical is engineered to keep machine status visible at a glance, even in high‑ambient‑light environments. Its LED design not only delivers exceptional clarity but also functions as an Energy‑Efficient D022‑1 Signal Tower Light, helping reduce both energy costs and carbon footprint.
Constructed with a durable enclosure, this Waterproof D022‑1 Signal Tower Light stands up to harsh industrial conditions, safeguarding internal components against water, dust, and mechanical stress. Its Long‑Life D022‑1 Signal Tower Light performance means less frequent replacements and lower maintenance costs over time.Operators can benefit from the Multi‑Color D022‑1 Signal Tower Light, which provides customizable signaling options for different operational states. The Adjustable D022‑1 Signal Tower Light design makes installation simple—whether mounted on walls, poles, or integrated into control panels—ensuring compatibility with a variety of production setups.
Fully compatible with PLC systems from KEYENCE, MITSUBISHI, OMRON, Panasonic, FUJI, AB Allen‑Bradley, and YOKOGAWA, the D022‑1 is part of SiRON’s trusted range of industrial control solutions. It blends cutting‑edge design with proven durability, making it the go‑to choice for facilities seeking dependable, long‑term signaling performance.
|
|

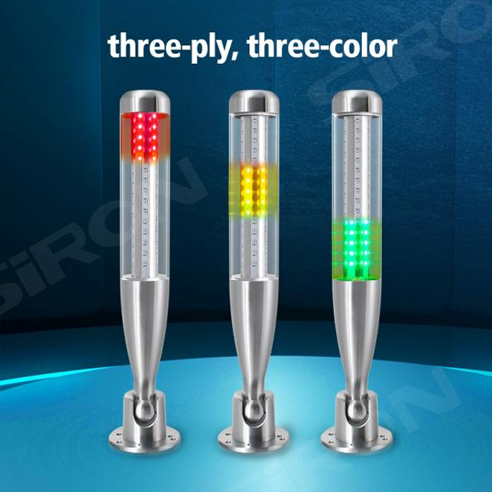

LED signal light Luminous uniformity >95dB Precision aluminum | Three-ply, three-color |
|
|

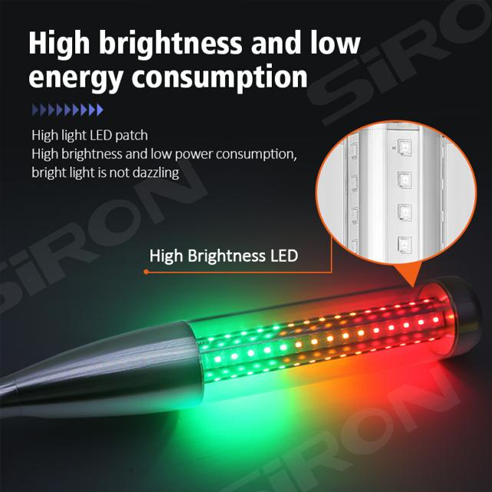

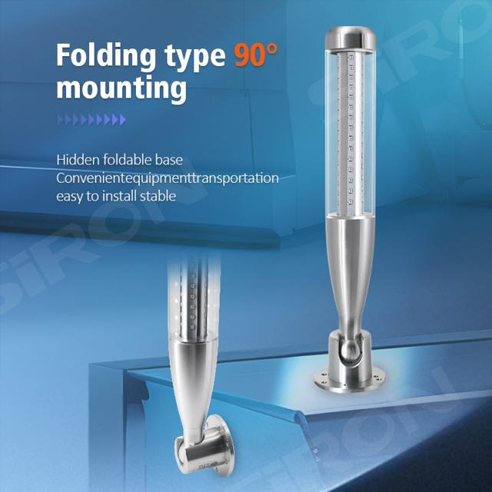

Folding type 90 mounting Hidden foldable base Convenient equipment transportation Easy to install stable | High brightness and low energy consumption High light LED patch High brightness and low power consumption, bright light is not dazzling High brightness LED |
About selection
Type analysis | ||
① | LED signal lamp series | D022-1 |
② | Working condition | Blank:Always on B:Always on with buzzer |
| ③ | Signal polarity | Blank:NPN P:PNP |
Product specifications
Model number | D022-1 |
Appearance |
|
Input voltage/ input current | Input voltage:Dc 24V Input current:monochrome 100mA Buzzer 25mA |
The material | PC lamp shade+aluminum alloy lamp case |
Power | 2.4W～3.2W |
Light source/Luminous angle | Light source:Patch 2835 LED luminous Angle:360° |
Sound intensity/Class of protection | Sound intensity:>95dB Protection level:IP50 |
Color layer | Three layers and three colors |
Working condition | Always on/Always on with buzzer |

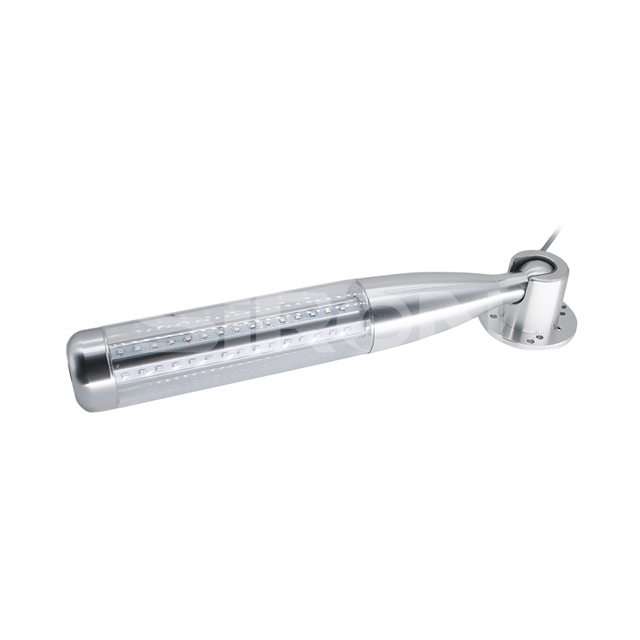

Installation mode/Number of flashes | Installation mode:bending type90° Number of flashes:60-70/min |
Service life/Standard wiring length | Working life:70000h Distribution length:500mm |
Connection mode | NPN common positive electrode /PNP common negative electrode |
Ambient temperature/storage temperature | -20~45℃/-40~70℃ |
Ambient humidity/Storage humidity | 10~90% |
Luminescent lamp source color |
|

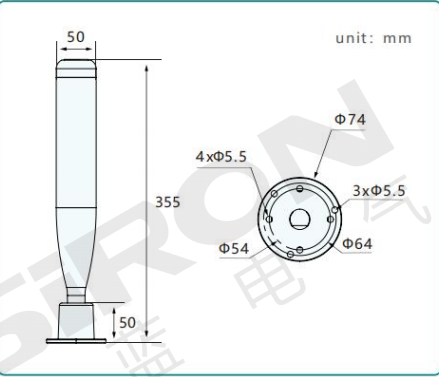

External Drawing

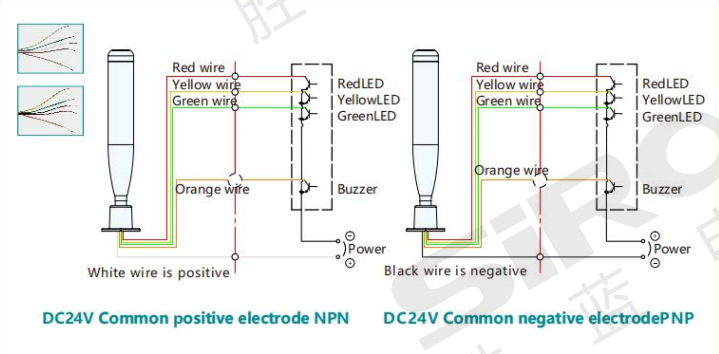

Wiring diagram
