High brightness D017-1 Signal Tower Light

Easy installation D017-1 Signal Tower Light

Industrial grade D017-1 Signal Tower Light

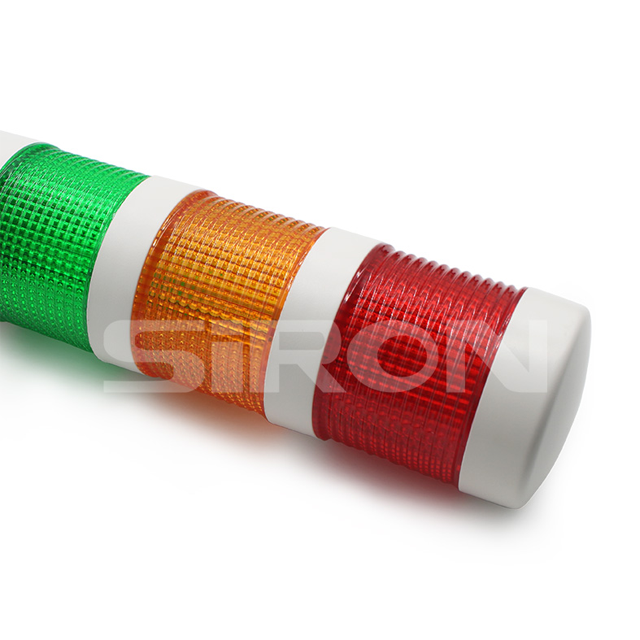

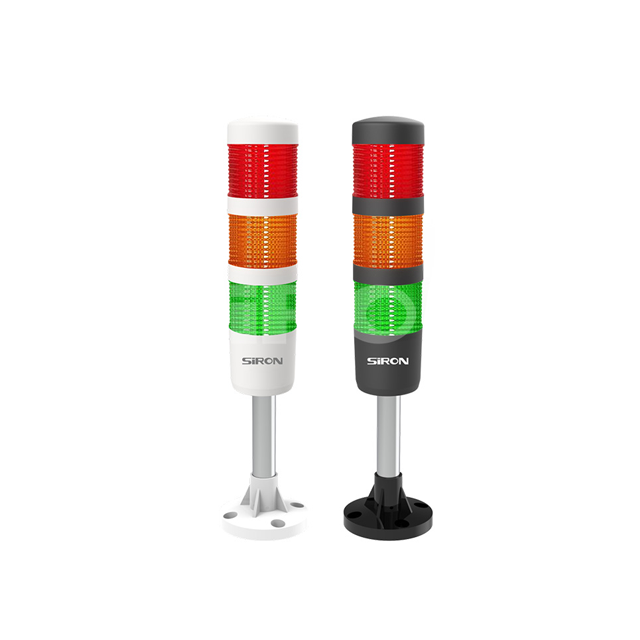

D017-1 Signal Tower Light

Features
● Exquisite and beautiful structure, unique and innovative appearance.
● Fully functional and cost-effective.
● High light LED patch.
● High brightness, large Angle, low thermal resistance.
● The overall structure design has good heat dissipation.
● The high quality drive plate guarantees the overall life of the lamp.

Quantity:
Availability:





Inquire Add to Basket

D017-1 Signal Tower Light High brightness D017-1 Signal Tower Light Waterproof D017-1 Signal Tower Light Easy installation D017-1 Signal Tower Light Industrial grade D017-1 Signal Tower Light Adjustable flashing speed D017-1 Signal Tower Light High visibility D017-1 Signal Tower Light

Product Description

The D017-1 Signal Tower Light is designed to deliver exceptional performance with high brightness D017-1 Signal Tower Light illumination, ensuring clear visual alerts even in bright industrial environments. Its waterproof D017-1 Signal Tower Light construction offers reliable operation in harsh conditions, including areas with moisture, dust, or oil exposure.With its easy installation D017-1 Signal Tower Light design, setup is quick and straightforward, reducing downtime during equipment upgrades or maintenance. Engineered to meet demanding industry standards, the industrial grade D017-1 Signal Tower Light provides robust durability and stable functionality over extended periods of heavy use.Featuring adjustable flashing speed D017-1 Signal Tower Light capability, users can customize signal frequency to match specific operational needs. The high visibility D017-1 Signal Tower Light ensures alerts are easily seen from multiple angles and distances, enhancing workplace safety and communication in manufacturing plants, warehouses, and automation systems.

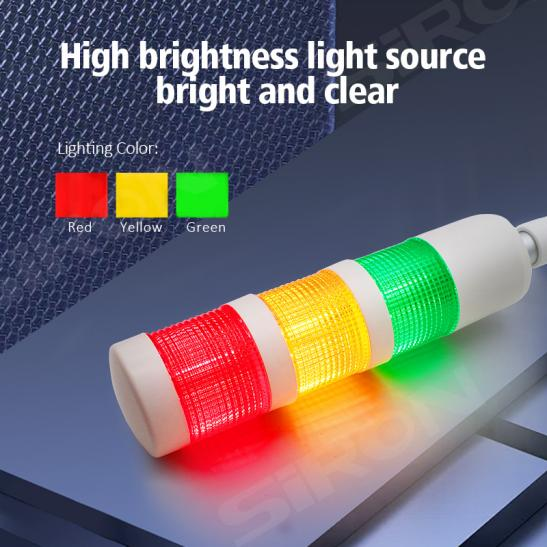

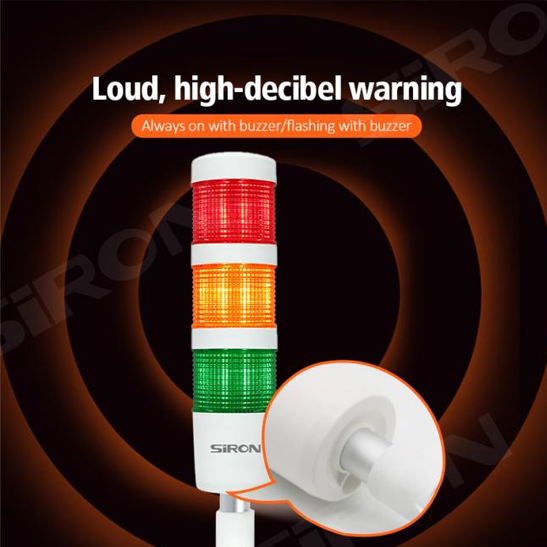

High brightness light source bright and clear Lighting color:red yellow green	Loud,high-decibel warning Always on with buzzer/flashing with buzzer

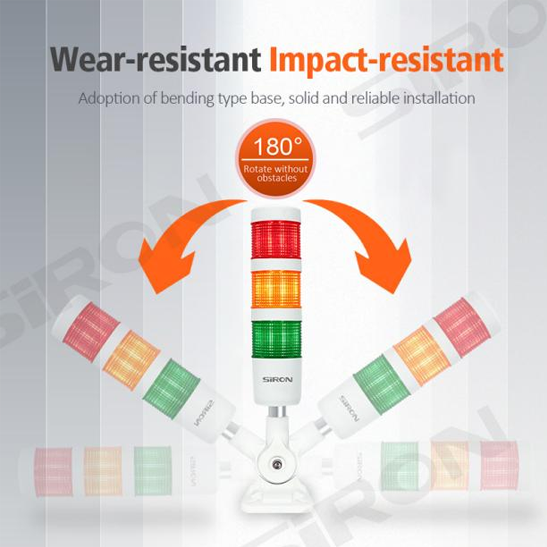

Wear-resistant Impact-resistance Adoption of bending type base, solid and reliable installation 180 rotate without obstacles	Constant current drive power supply A part of independent installation Import LED color light source luminous equilibrium

About selection

Type analysis
①	LED signal lamp series	D017-1
②	Working condition	B:Always on with beeping Q:Shining with beeping

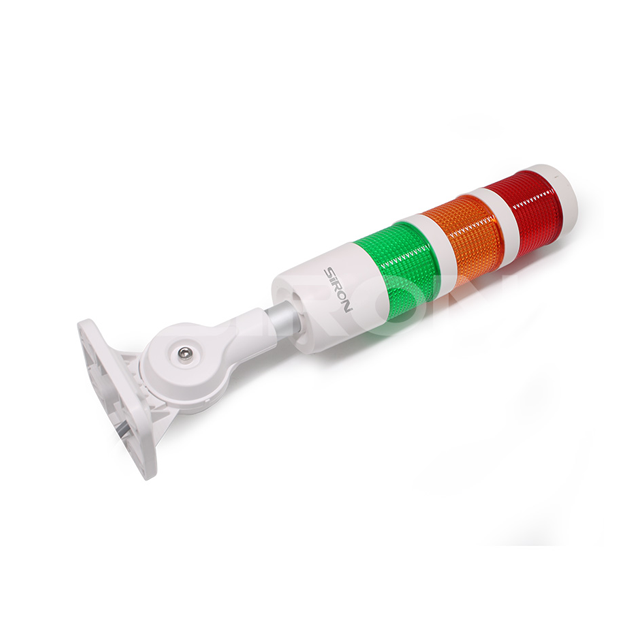

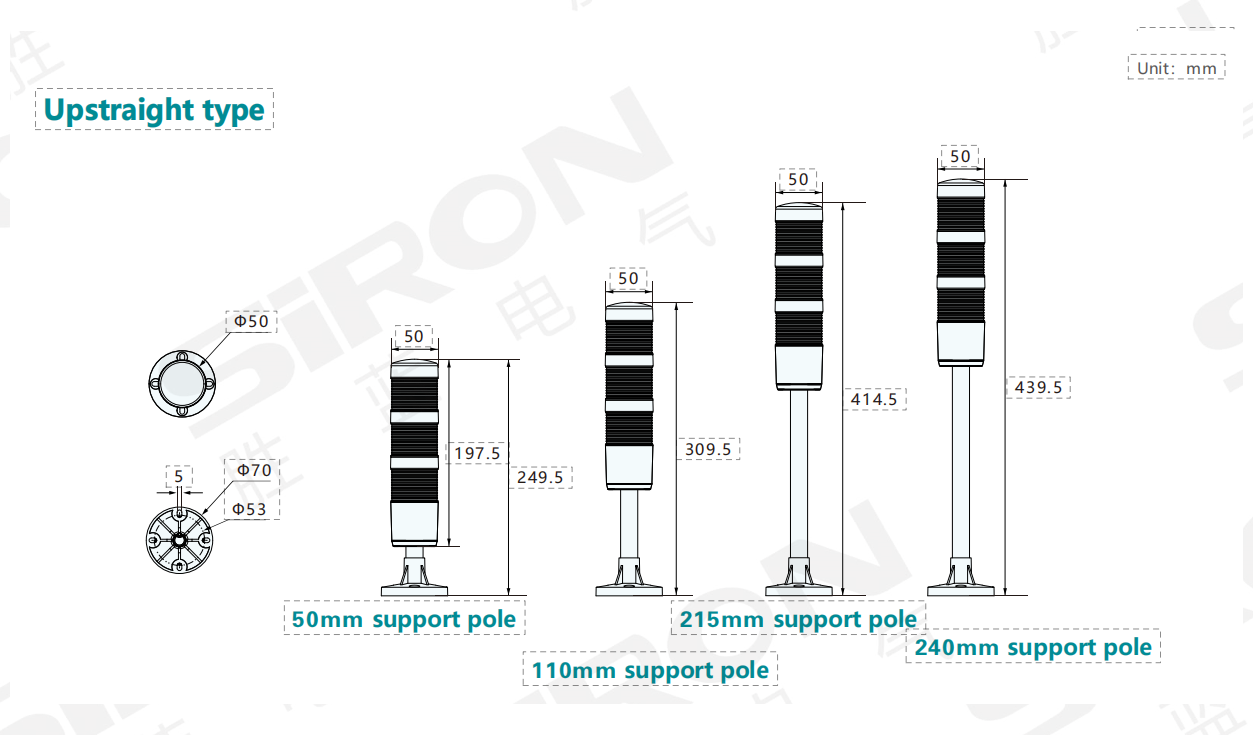

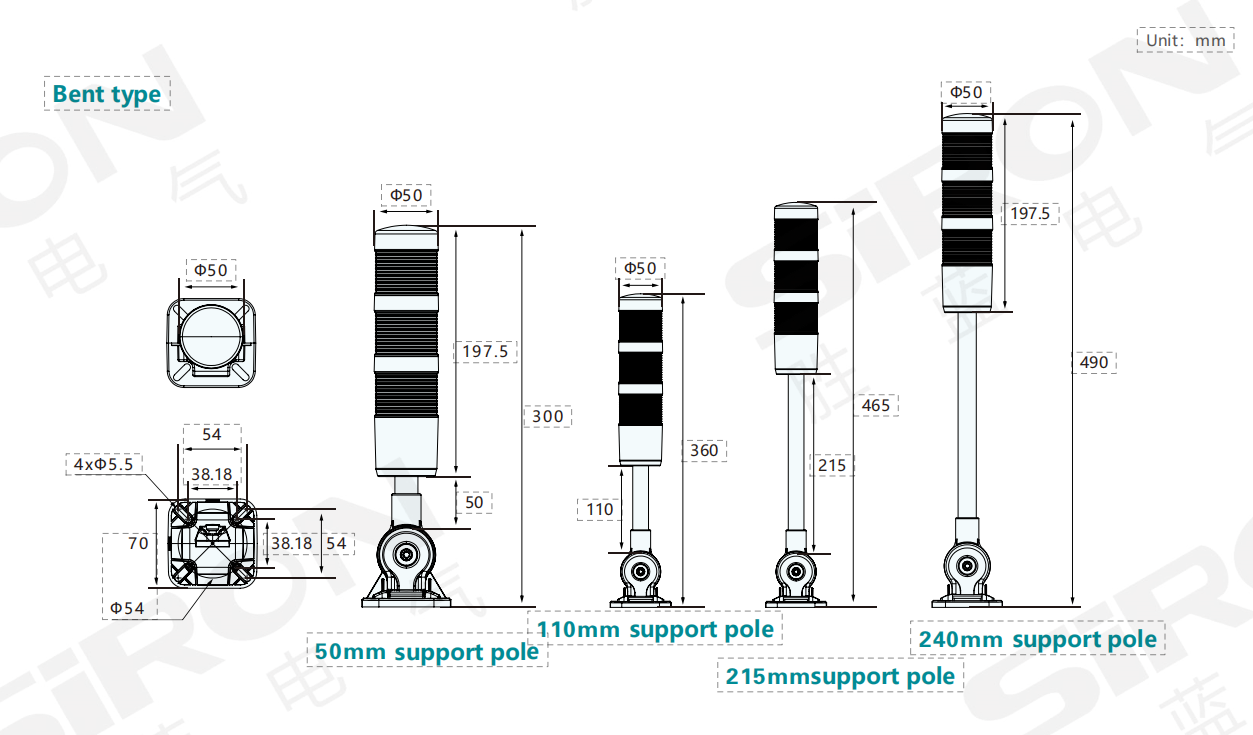

③	Installation mode	Blank:Bent type 1:Upright type 2:L bracket
④	Rod length	Blank:50mm rod L1:110mm rod L2:215mm rod L3:240mm rod

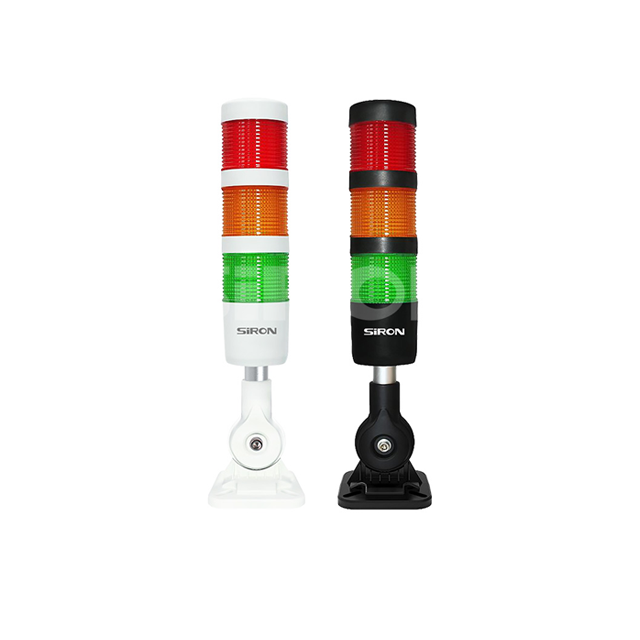

⑤	Case color	Blank:white H:Black

Note:The 50mm bent rod length is a regular standard product.Others are custom-made products.If you need customization,please contact our sales department.

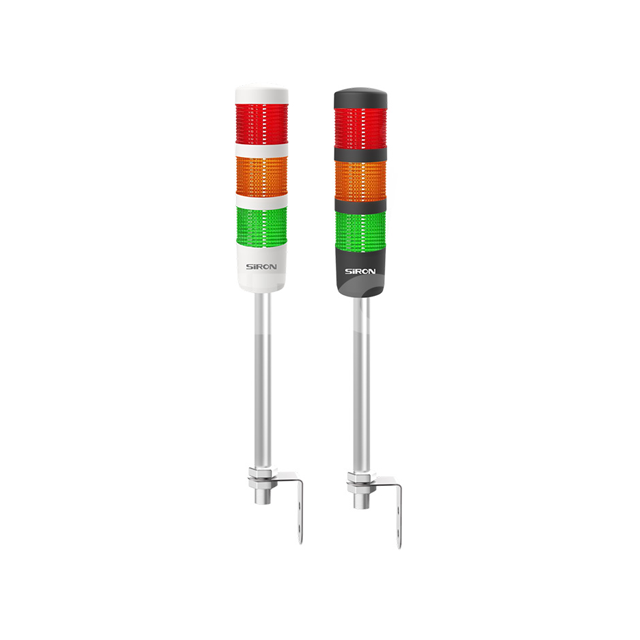

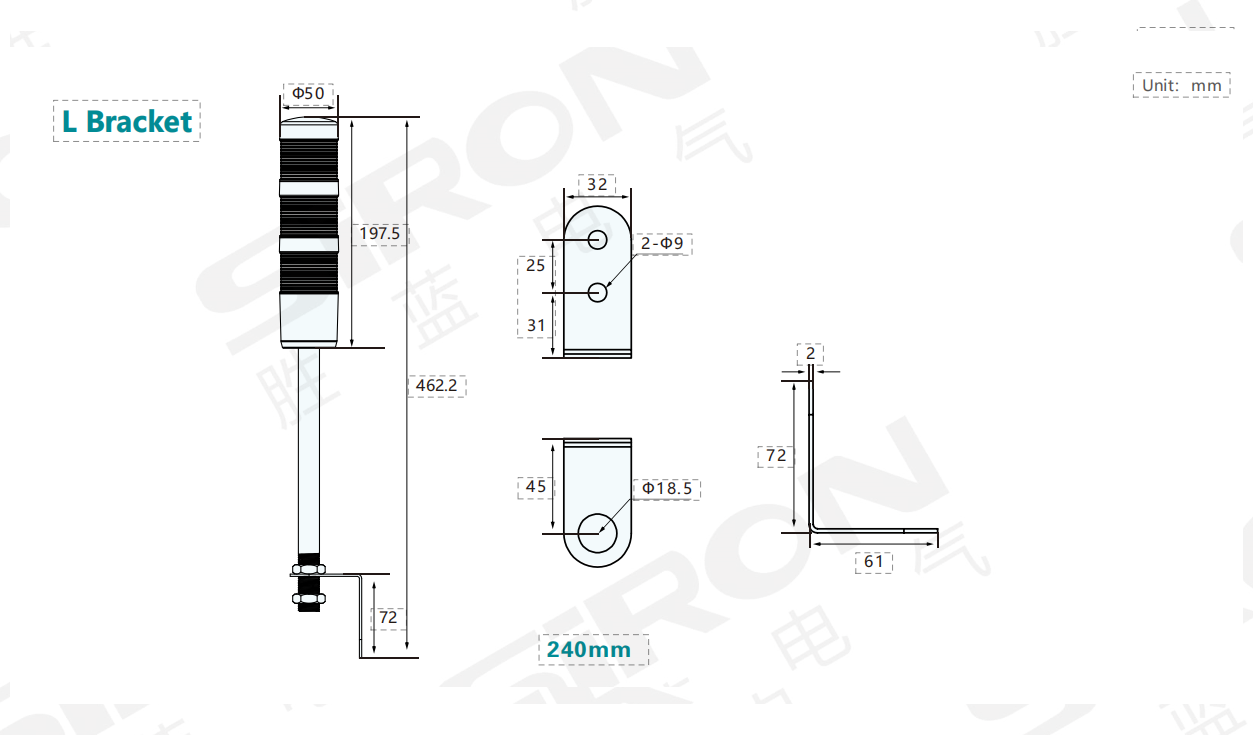

The L bracket can only be selected with a rod length of 240mm

Product Specifications

Model number	D017-1B	D017-1B-1	D017-1B-2
Appearance
input voltage/ input current	Input voltage:DC 24V Input current:Monochrome 30-70mA Buzzer 15mA
The material	PC lamp shade +ABS lamp shell
Power	1.2W～2W
Light source/Luminous angle	Light source:Surface mount 2835 LED Irritation angle:360°
Sound intensity/Class of protection	sound intensity:>90dB IP Grade:IP54
Color layer	Three layers and three colors
Working condition	Always on with beeping/Shining with beeping
Installation mode	Bend type	Up-straight type	L bracket
Number of flashes	60-70/min
Service life/Standard wiring length	service life:50000hWiring length:500mm

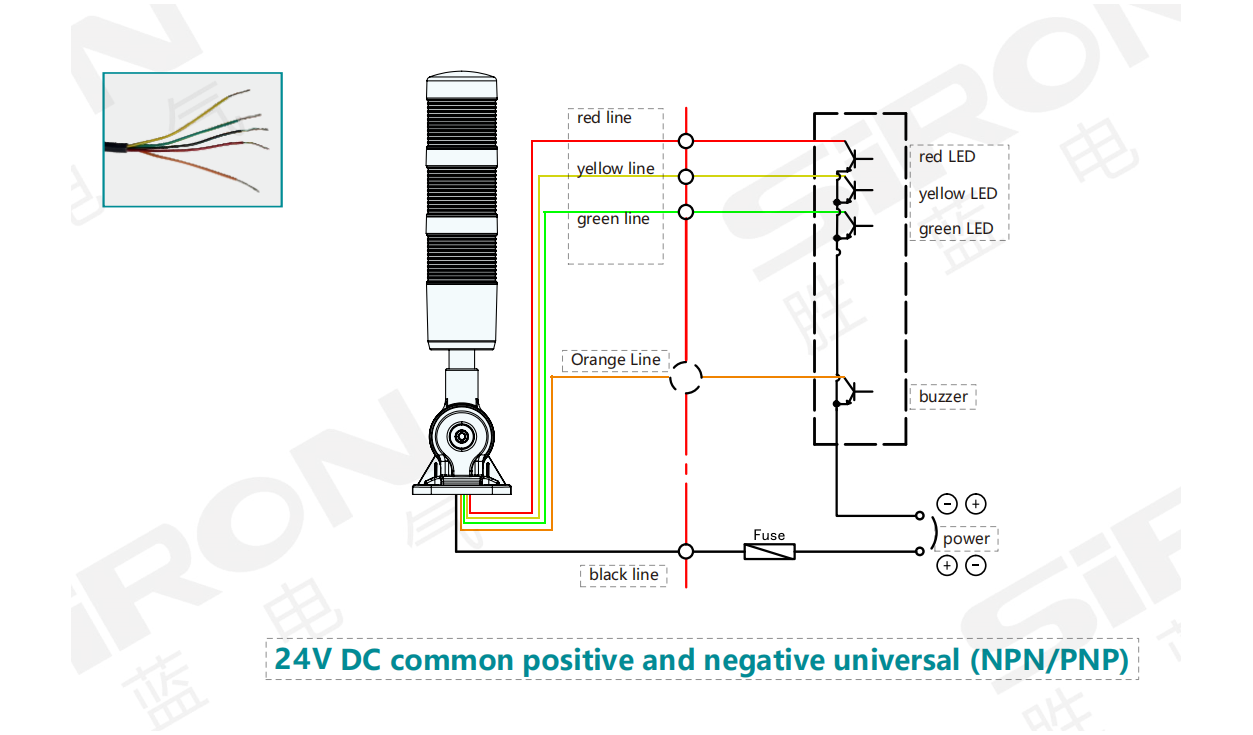

Connection mode	NPN/PNP common
Ambient temperature/storage temperature	-20~45℃/-40~70℃
Ambient humidity/Storage humidity	10~90%
Luminescent lamp source color
