| Quantity: | |
|---|---|
SiRON Electrical introduces the High-Brightness D018-7/8/9 Signal Tower Light, engineered to deliver outstanding visibility in demanding industrial environments. Designed with precision and manufactured to exacting standards, this tower light ensures your machine status is always clear, even in high ambient light conditions.Built with a Waterproof D018-7/8/9 Signal Tower Light housing, it withstands moisture, dust, and harsh factory conditions, providing reliable performance in both indoor and outdoor applications. Its Long-Life D018-718/9 Signal Tower Light LED technology reduces maintenance needs and ensures years of dependable operation, helping you minimize downtime and maximize efficiency.
The Adjustable D018-718/9 Signal Tower Light design allows for flexible installation, adapting to different mounting requirements such as wall, pole, or panel. For dynamic signaling, the Flashing D018-7/8/9 Signal Tower Light mode offers clear, attention-grabbing alerts to operators and maintenance staff.Featuring a Modular D018-7/8/9 Signal Tower Light configuration, users can easily customize light layers and color combinations to meet specific process needs. Whether for assembly lines, automation systems, or machinery status indication, SiRON’s signal tower lights deliver professional-grade performance trusted by industries worldwide.
As part of SiRON Electrical’s extensive control system solutions, this tower light integrates seamlessly with PLC systems from KEYENCE, MITSUBISHI, OMRON, Panasonic, FUJI, AB Allen-Bradley, and YOKOGAWA. Backed by our commitment to innovation and quality, the D018-7/8/9 series is a dependable choice for any modern industrial setting.
|
|

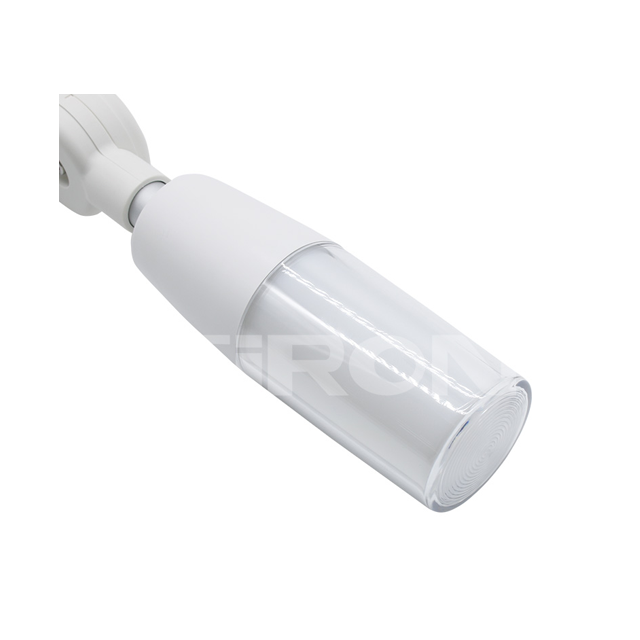

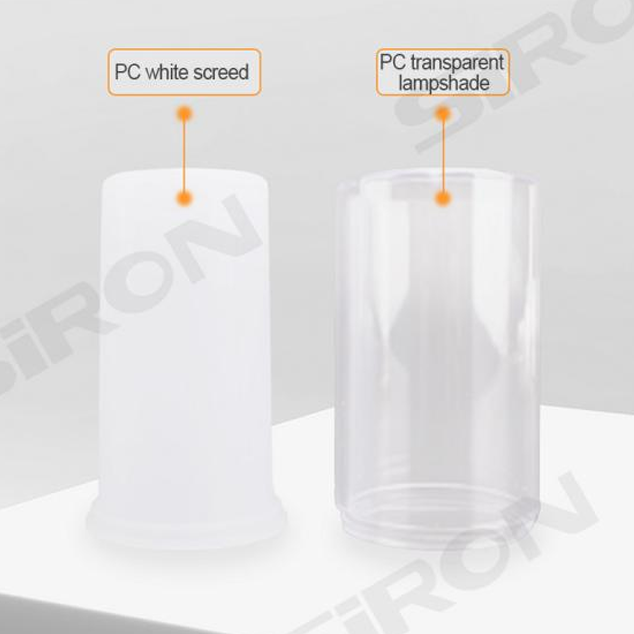

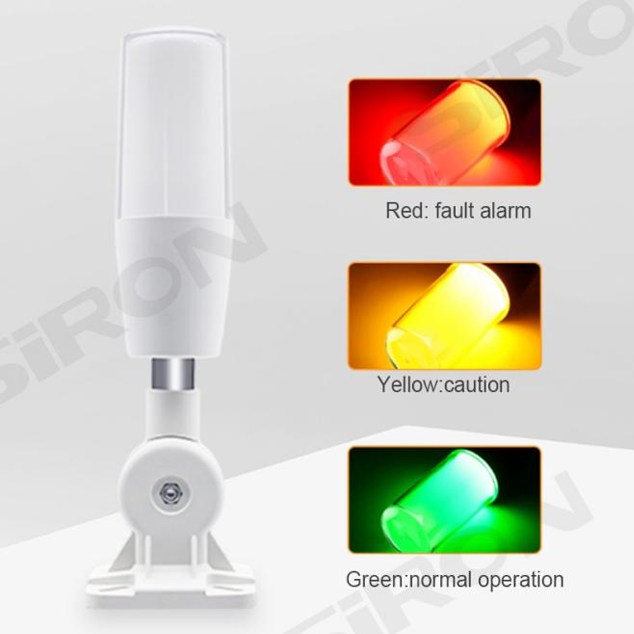

PC white screed PC transparent lampshade | Red: fault alarm Yellow: caution Green: normal operation |
|
|

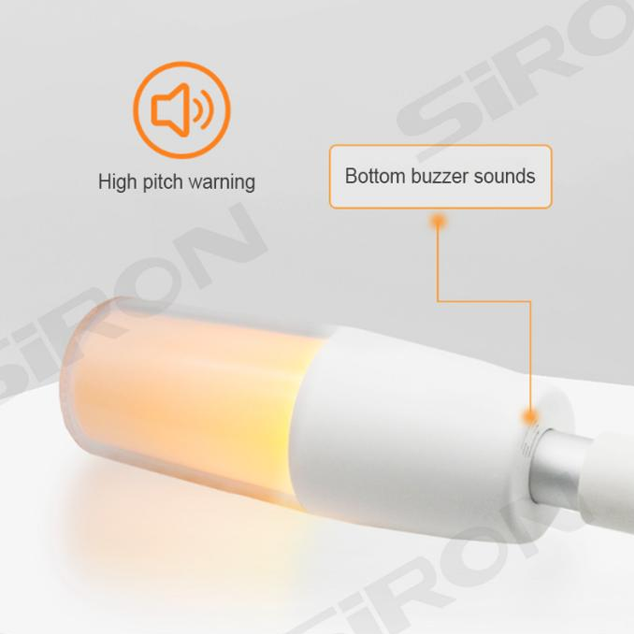

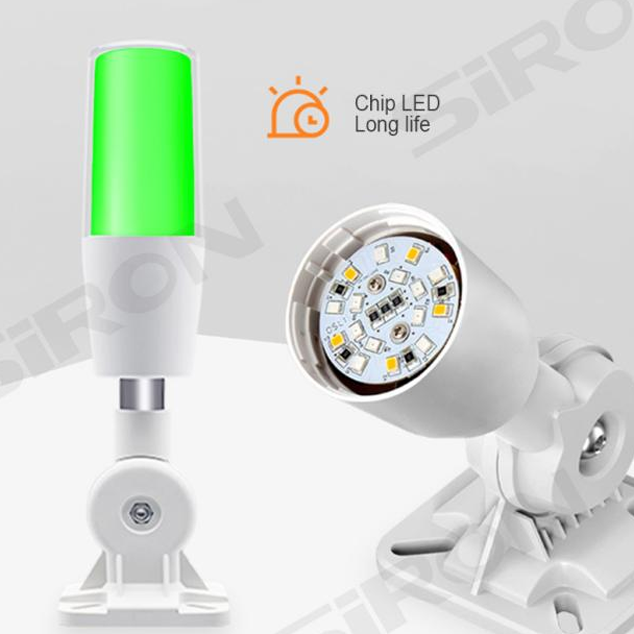

High pitch warning Bottom buzzer sounds | Chip LED long life |
About selection
Model | ||
① | LED signal light series | D018 |

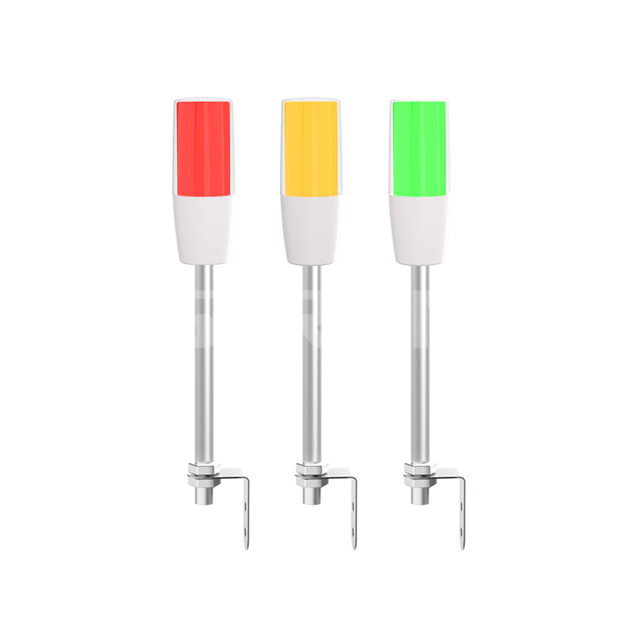

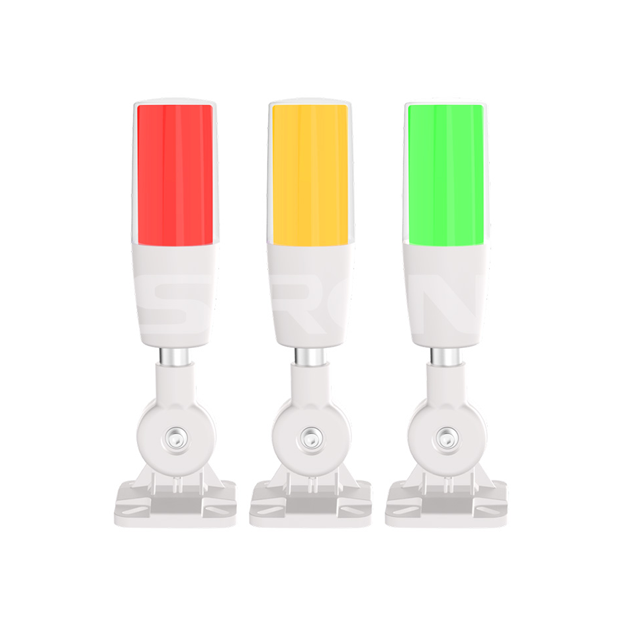

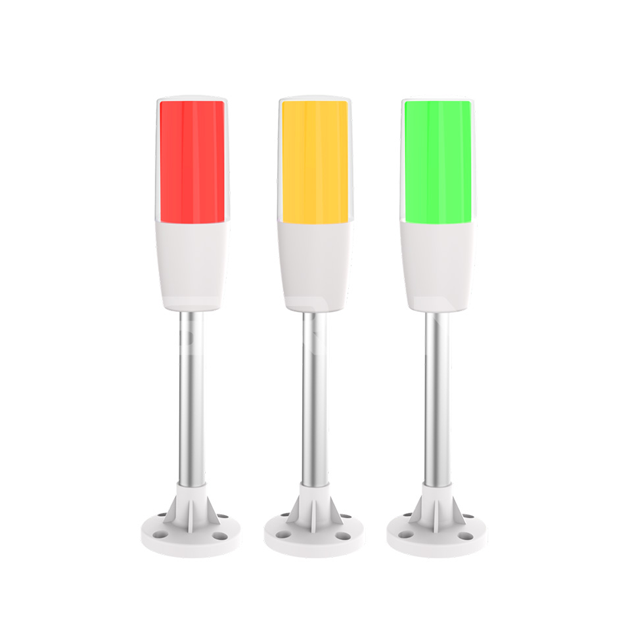

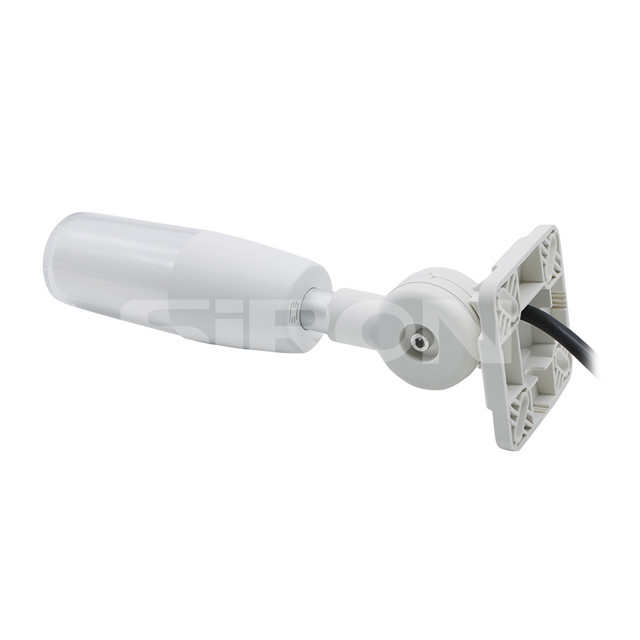

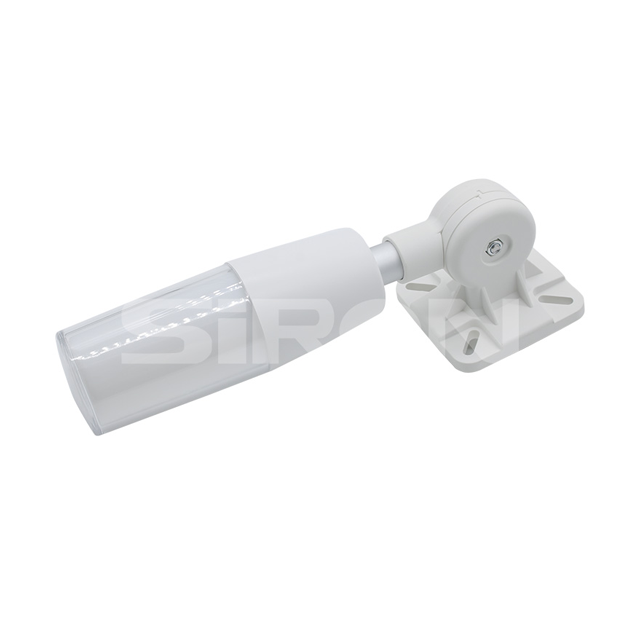

② | Installation mode | 7:upright type 8:bend type 9:L-shaped bracket |
| ③ | Working status | Blank:three colors(red,yellow and green) |
④ | Working condition | Blank:Always on B:Always on with buzzer S:Flashing Q:Flashing with buzzer |
| ⑤ | Connection mode | Blank:common positive/negative Universal C:contact type |
Product specifications
Model number | D018-7 | D018-8 | D018-9 |
Appearance | |||
Installation mode | Vertical type | Bent type | L-bracket |
Power/lnput voltage/lnput current | Power:2W~4.5W Input voltage:24V DC/220V AC Input Current:20mA~5.5mA | ||
The material/color layer | Material:Lamp shade PC+lamp shell ABS+aluminum alloy rod Number of color layers:three colors (red,yellow and green) | ||
Light source/Luminous angle/Protection level | Light source:Patch 2835 LED luminous Angle:whole lamp 360°Visual protection level :IP40 | ||
Working condition/Connection mode | Working state:Always on/Always on with buzzer/flashing/flashing with buzzer Wiring mode: | ||
Pound intensity/Service life/Standard wiring length | Sound intensity:Buzzer>90 dB Service life:50000h Standard wiring length:1500mm | ||
Operating humidity/Storage humidity | Operating temperature:-20~45℃ Storage temperature:-40~70℃ | ||
Operating humidity/Storage humidity | Operating humidity:10~90%Storage humidity:10~90% | ||
Luminescent lamp source color |
| ||

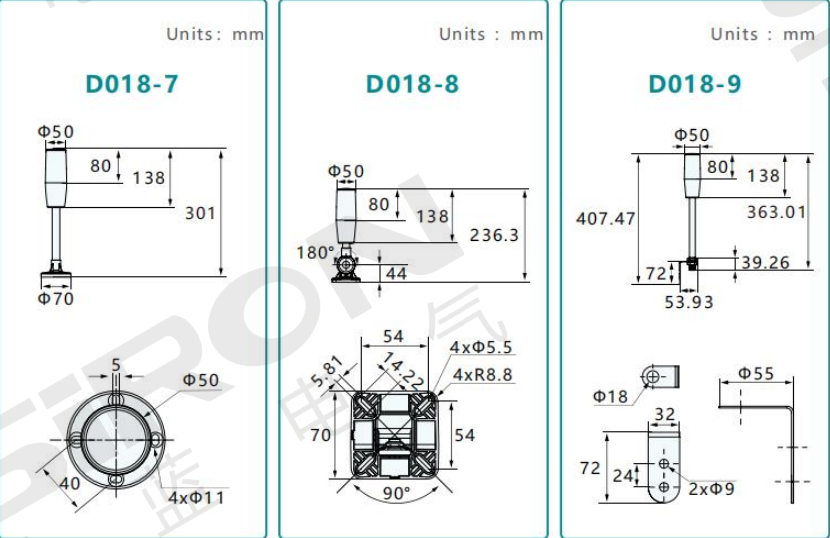

External Drawing

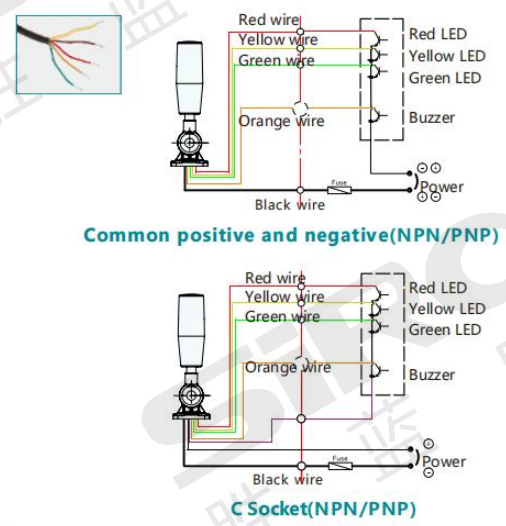

Wiring diagram
