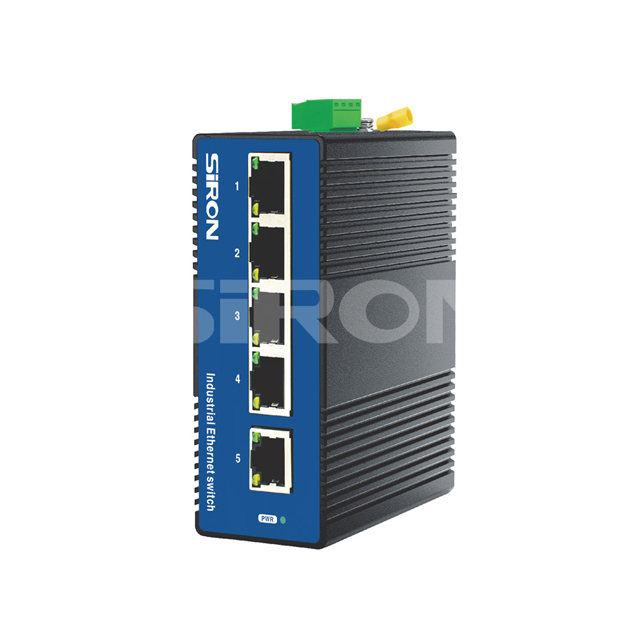

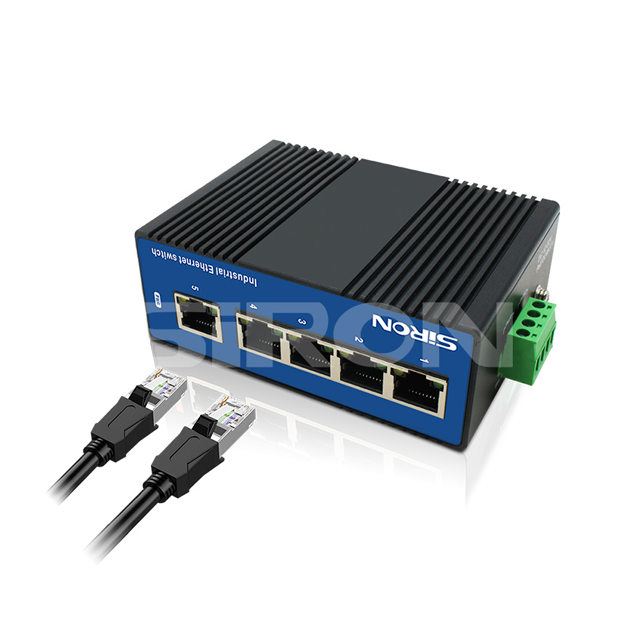

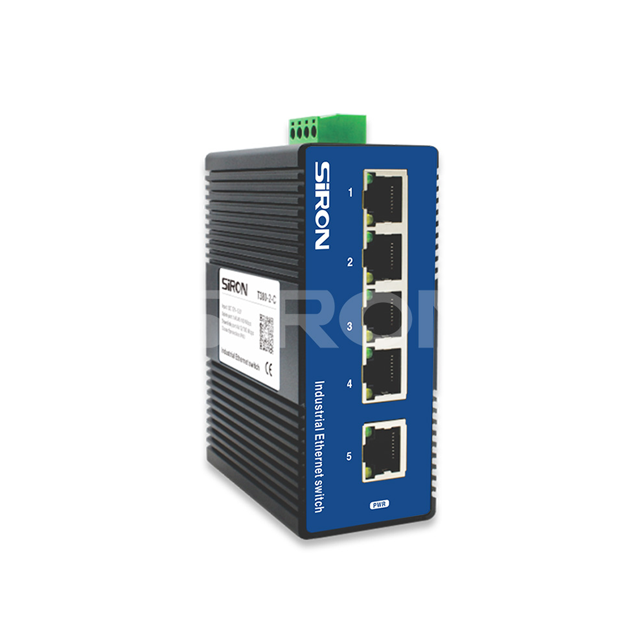

T380-2-C Industrial Switch

Features
● Provides 4 10/100Mbps down electrical port to 1 10/100Mbps up electrical port, can expand IEEE802.3af(15.4W)/at(30W).
● Support wide temperature design -40℃ ~ 85℃ to meet harsh environment application requirements.
● Support dual power supply redundancy backup, reverse protection input power supply.
● EMC industrial level 4 electromagnetic anti-interference, lightning protection (common mode ±4KV, differential mode ±2KV).
● Support IP40 protection class, fanless design, aluminum alloy metal housing, DIN rail mounting/wall mounting.

Quantity:
Availability:





Inquire Add to Basket

T380-2-C Industrial Switch Low-power T380-2-C Industrial Switch Secure T380-2-C Industrial Switch Network-optimized T380-2-C Industrial Switch High-performance T380-2-C Industrial Switch Durable T380-2-C Industrial Switch Advanced T380-2-C Industrial Switch

Product Description

The low-power T380-2-C industrial switch from SiRON Electrical is a secure and network-optimized solution engineered for modern industrial automation and control systems. Designed for maximum operational stability, this high-performance T380-2-C industrial switch delivers fast, reliable connectivity while minimizing energy consumption, making it ideal for efficiency-driven manufacturing environments. Built with robust materials and precision engineering, the durable T380-2-C industrial switch withstands heavy use and harsh operating conditions, ensuring long service life. Incorporating intelligent design and cutting-edge technology, the advanced T380-2-C industrial switch integrates seamlessly with leading PLC brands such as KEYENCE, MITSUBISHI, OMRON, Panasonic, FUJI, AB Allen-Bradley, and YOKOGAWA, providing a dependable solution trusted by professionals worldwide. Developed under SiRON’s philosophy of “Endless innovation, Everlasting operation,” this model reflects the company’s commitment to delivering superior quality and performance in every product.

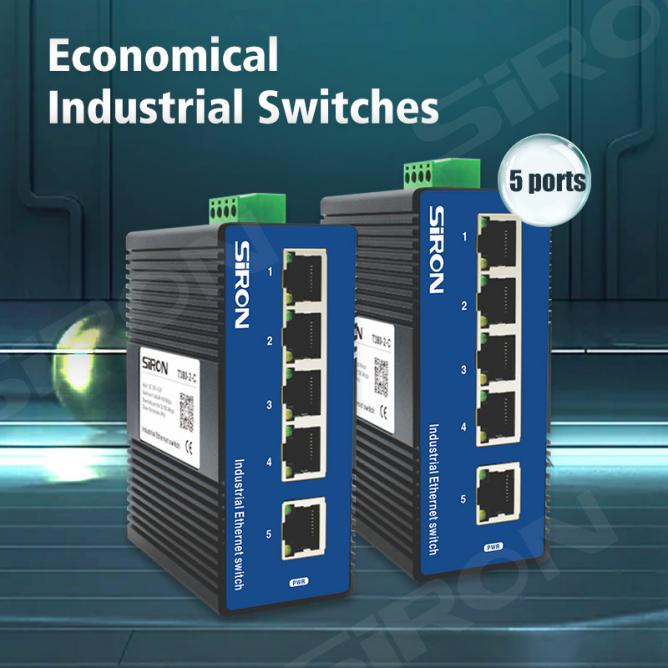

Economical industrial switches

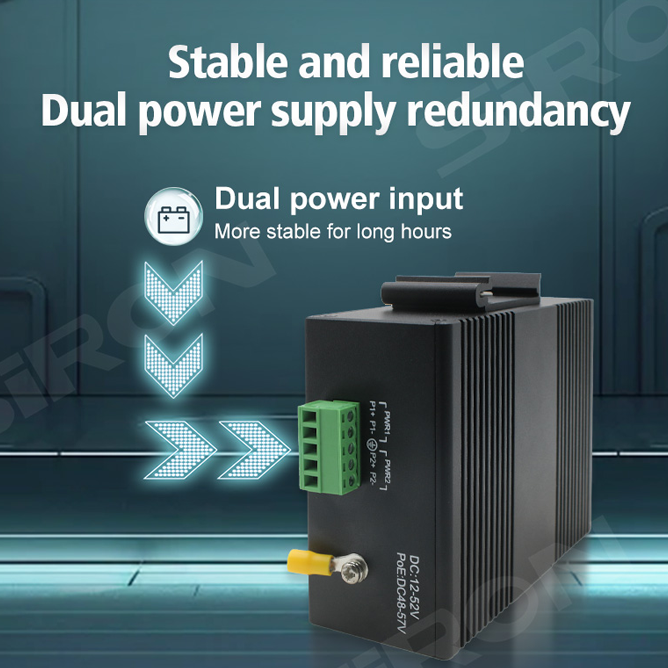

Stable and reliable dual power supply redundancy

Dual power input more stable for long hours

Application industry

Intelligent transportation application

Application in the industrial automation industry

Selection reference

Model	T380-2-C	T380-2E-C
Electrical interface	5
Speed	100M
Power source	DC12-52V	DC48-52V
Port descriptian	5x10/100Mbps RJ45 port	4x10/100Mbps RJ45 PoE port 1x10/100Mbps uplink RJ45 port

Specifications

Rj45port		10/100BaseT (X)automatic detection;Full/half-duplex MDI/MDI-X adaptive
Network protocol		IEEE802.3-CSMA/CD;IEEE802.3i-10Base-T; IEEE802.3u-100Base-TX/EX;IEEE802.3x-flow control;
PoE(optional)		PoE standard:Meets IEEE802.3af/IEEE802.3at;Maximum single port:15.4W(IEEE 802.3af)Maximum single port :30W(IEEE 802.3at)PoE compatibility :IEEE 802.3af/at adaptive;PoE port output voltage:DC 48-52V;PoE power supply core:(af/at):1/2+,3/6-
Access terminal		Phoenix Terminal
Mean time between failures		300,000 hours
Switch properties	Backplane bandwidth	1Gbps	Mechanical characteristic	Shell	IP40 protection grade,metal casing
	Application level	Two layers		Install	DIN card rail type,wall-mounted installation
	Packet forwarding rate of the system	0.744Mpps		Heat dissipation mode	Natural cooling,fanless
	MAC table	1K	Working environment	Operating temperature	-40~85℃(-40~185°F)
	Packet buffer	448K		Storage temperature	-40~85℃(-40~185°F)
	Delay time	<3μs		Relative humidity	5%~95%(without condensation)
	Switching mode	Two layers	LED index	Power indicator light	PWR
	Overall owercnsumpfion	<3W(Non-POE)		Interface indicator	electrical interface(Link/ACT)

Industry standard

EMI:
FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
EC(EN)61000-4-2(ESD):±8kV(contact),±15kV(air)
IEC(EN)61000-4-3(RS):10V/m(80～1000MHz)
IEC(EN)61000-4-4(EFT):Power Port:±4kV;Data Port:±2kV
IEC(EN)61000-4-5(Surge):Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV
EC61000-4-6(CS):10V(150kHz~80MHz)/IEC(EN)61000-4-16(CM EMI):30V cont.300V,1s
EC 60068-2-27(Shock)/IEC 60068-2-32(Free fall)/IEC 60068-2-6(Vibration)
