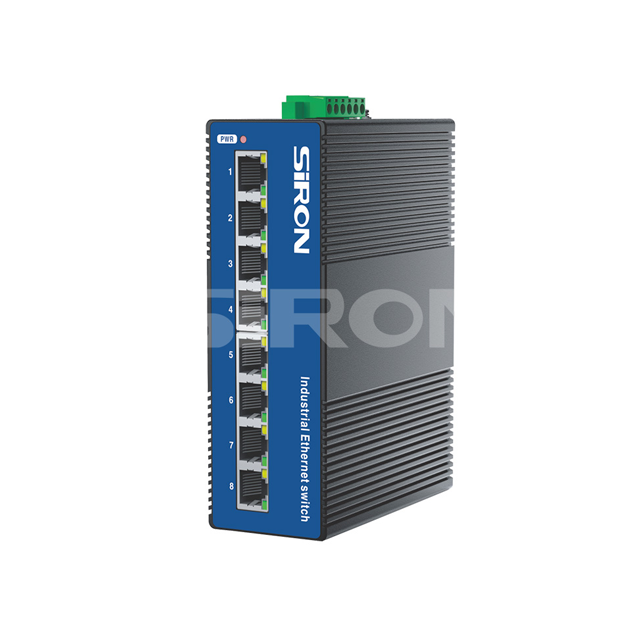

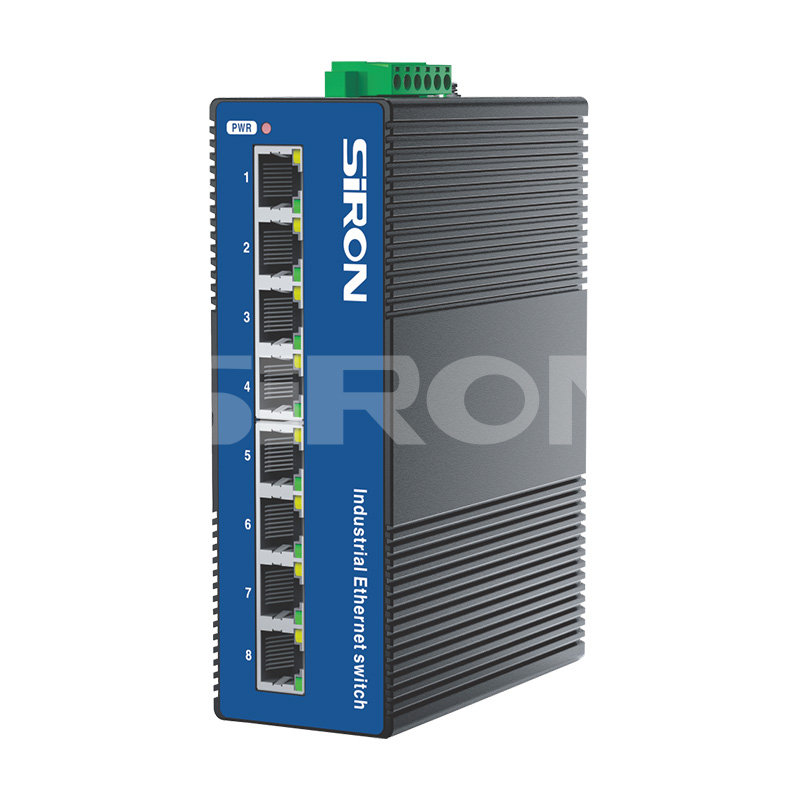

T380-13 Industrial Switch

Features
● Provides 8 10/100/1000Mbps down connection ports, can expand IEEE802.3af(15.4W)/at(30W).
● Support wide temperature design -40℃ ~ 85℃ to meet harsh environment application requirements, EMC industrial level 4 electromagnetic anti-interference.
● Support dual power supply redundancy backup, built-in overcurrent 4.0A protection, connected to reverse protection input power supply.
● Support IP40 protection class, fanless design, aluminum alloy metal housing, DIN rail mounting/wall mounting.

Quantity:
Availability:





Inquire Add to Basket

T380-13 Industrial Switch Heavy-duty T380-13 Industrial Switch Waterproof T380-13 Industrial Switch Compact T380-13 Industrial Switch High-speed T380-13 Industrial Switch Outdoor T380-13 Industrial Switch Weatherproof T380-13 Industrial Switch

Product Description

The heavy-duty T380-13 industrial switch from SiRON Electrical is purpose-built for reliable performance in high-demand environments. Constructed with robust materials and advanced engineering, it offers long-lasting durability for a wide range of industrial control applications.

Protection Against Harsh Conditions
Featuring a waterproof T380-13 industrial switch design, it shields sensitive components from moisture, dust, and contaminants. Its weatherproof T380-13 industrial switch capability makes it ideal for exposed installations in logistics hubs, outdoor facilities, and heavy machinery sites.

Space-Saving, High-Speed Performance
With a compact T380-13 industrial switch design, it fits seamlessly into tight control cabinets while still delivering exceptional throughput. This high-speed T380-13 industrial switch ensures rapid signal response, supporting faster and more efficient automation processes.

Optimized for Outdoor Operations
Perfect as an outdoor T380-13 industrial switch, it maintains consistent performance even in challenging environmental conditions. Whether in manufacturing plants, marine operations, or construction sites, it delivers stable and dependable control.

Quality You Can Trust
Designed by SiRON, a leader in electrical control systems, the T380-13 reflects decades of expertise and innovation. Fully compatible with major PLC brands including KEYENCE, MITSUBISHI, OMRON, Panasonic, FUJI, AB Allen-Bradley, and YOKOGAWA, it stands as a reliable solution for professionals who demand precision, durability, and operational efficiency.

Application industry

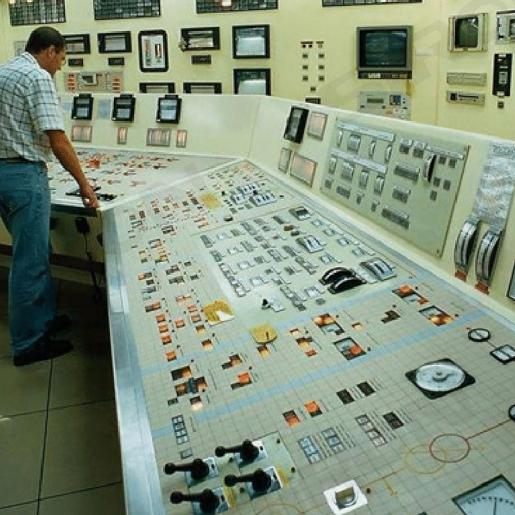

Industrial control application

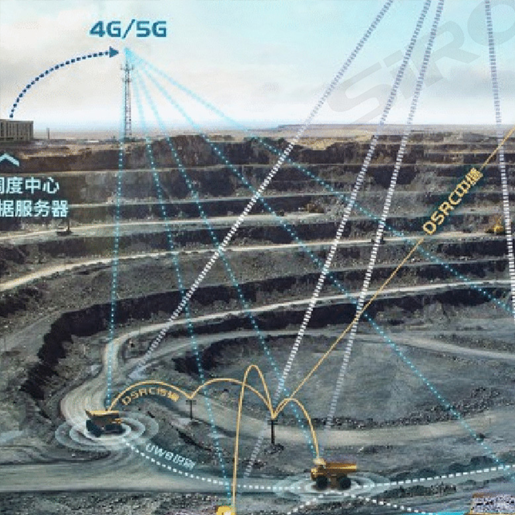

Application in the intelligent coal mine industry

Selection reference

Model	T380-13	T380-13E
Electrical interface	8
Speed	Gigabit
Power source	DC12-52V	DC48-52V
Port description	8x10/100/1000Mbps RJ45 port	8x10/100/1000Mbps RJ45 POE port

Specification

Rj45port		10/100/1000BaseT (X)automatic detection;Full/half-duplex MDI/MDI-X adaptive
Network protocol		IEEE 802.3-CSMA/CD IEEE 802.31-10base-T IEEE 802.3U-100BASE-TX/FX IEEE 802.3X-Flow Control IEEE 802.3Z-1000BASE-X IEEE 802.3AB-1000base-T
PoE (optional)		PoE standard:Meets IEEE802.3af/IEEE802.3at; Maximum single port:15.4W(IEEE 802.3af)Maximum single port :30W(IEEE 8 PoE compatibility :IEEE 802.3af/at/Adaptive;PoE port output voltage:DC 48-57V; PoE power supply core:1/2+,3/6-

Access terminal		Phoenix Terminal
Mean time between failures		300,000 hours
Switch properties	Backplane bandwidth	16Gbps	Mechanical characteristic	Shell	P40 protection grade,metal casing
	Application level	Two layers		Install	DIN card rail type,wall-mounted installation
	Packet forwarding rate of the system	11.904Mpps		Heat dissipation mode	Natural cooling,fanless
	MAC table	8K	Working environment	Operating temperature	-40~85°℃(-40~185°F)
	Packet buffer	1K		Storage temperature	-40~85°℃(-40~185°F)
	Delay time	<3μs		Relative humidity	5%~95%(without condensation)
	Switching mode	Storage -Forwarding	LED index	Power indicator light	PWR
	Overall power consumption	<3W(Non-POE)		Interface indicator	Electrical interface(Link/ACT)

Industry standard

EMI:
FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
EC(EN)61000-4-2(ESD):±8kV(contact),±15kV(air)
EC(EN)61000-4-3(RS):10V/m(80～1000MHz)
EC(EN)61000-4-4(EFT):Power Port:±4kV;Data Port:±2kV
EC(EN)61000-4-5(Surge):Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV
EC61000-4-6(CS):10V(150kHz~80MHz)/IEC(EN)61000-4-16(CM EMI):30V cont.300V,1s
EC 60068-2-27(Shock)/IEC 60068-2-32(Freefall)/IEC 60068-2-6(Vibration)

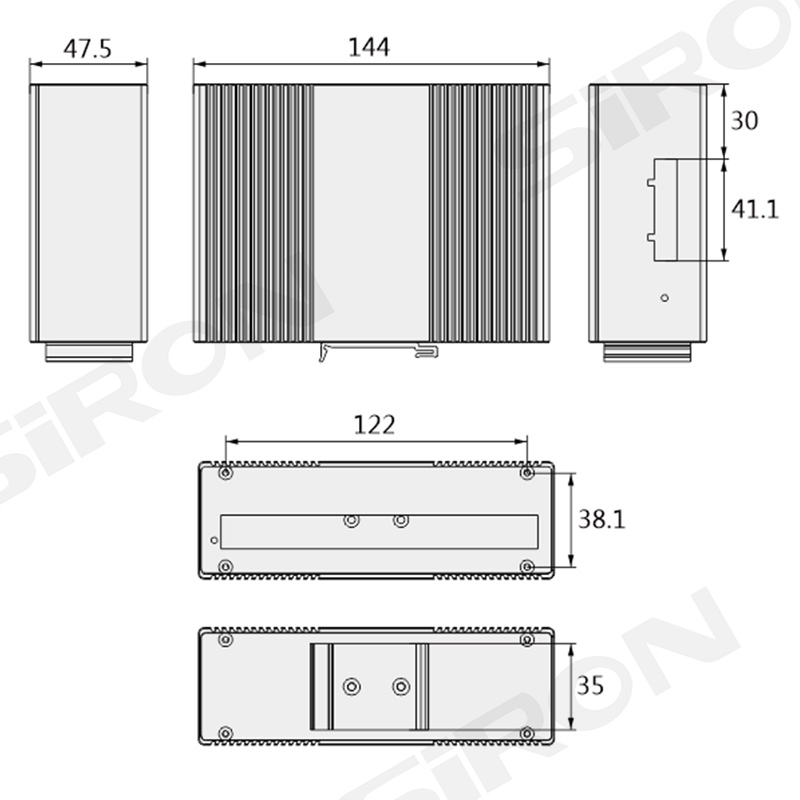

Dimensions
