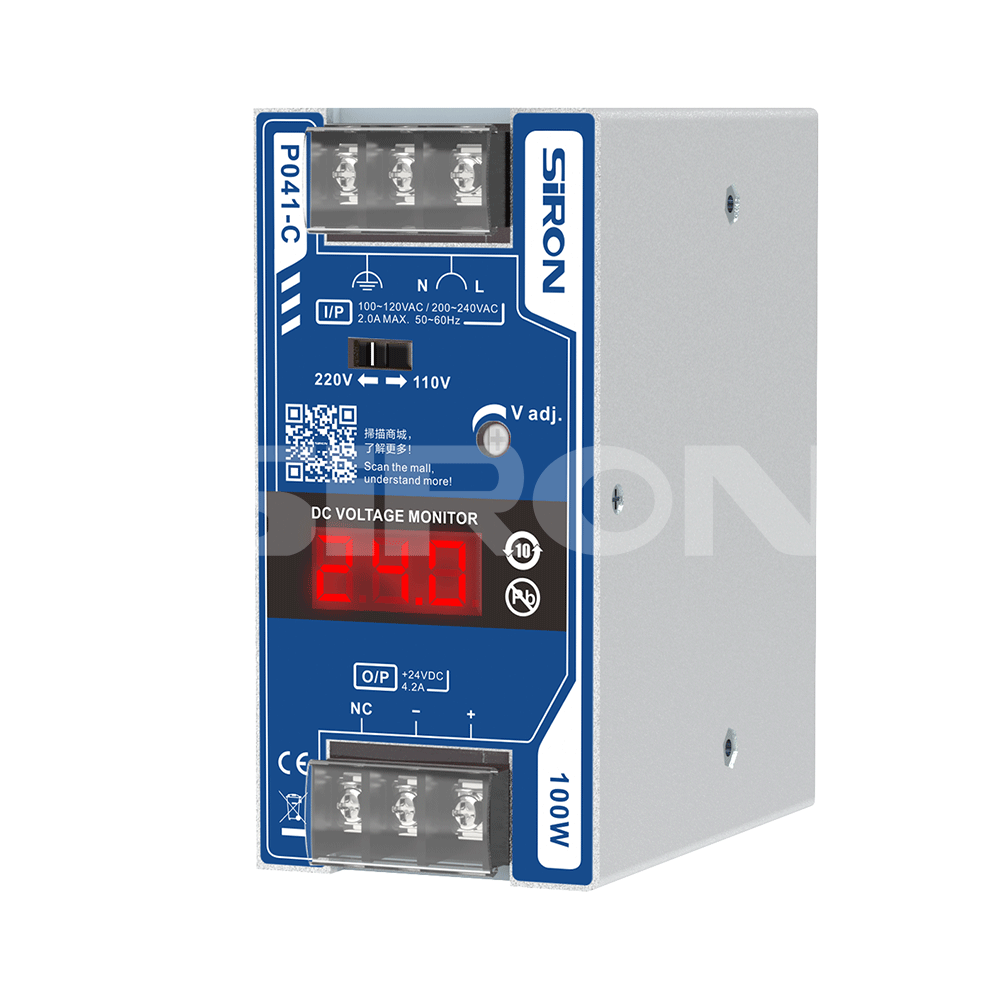

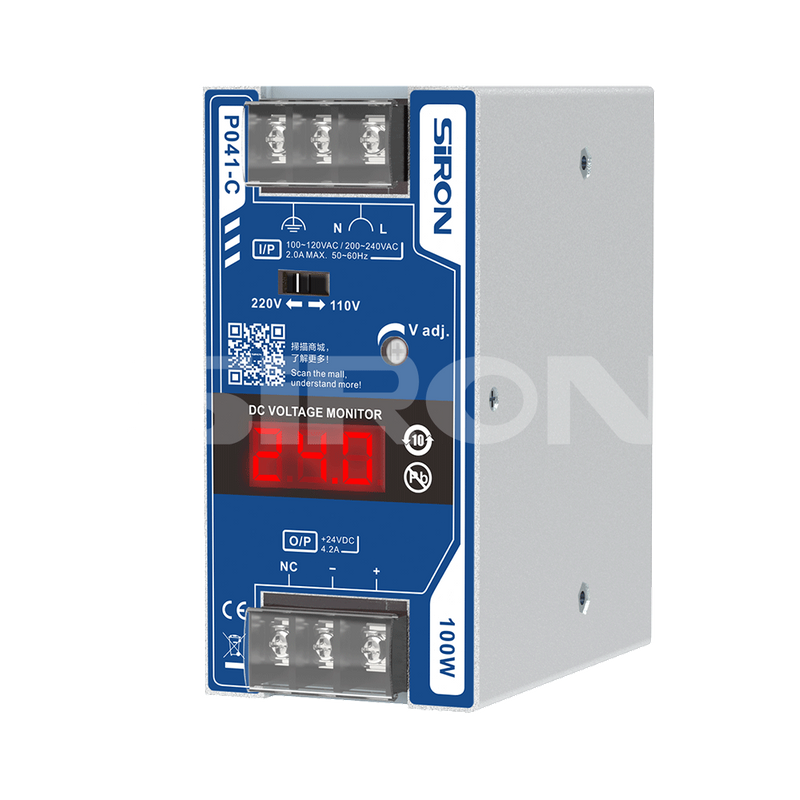

SiRON P041-C Series Economical Digital Display Switching Power Supply

SiRON P041-C Series Economical Digital Display Switching Power Supply

Name: SiRON P041-C Series Economical Digital Display Switching Power Supply
Brand: SiRON
Rating: 5.0 (51 reviews)

Features

No-load low power consumption less than 0.3W (no voltage display model);
Comply with energy-saving power supply 80Plus specification, 2010 energy-saving power supply Erp specification;
Voltage display of "Monitor power output" status (selective function);
Natural heat dissipation, no fan, long life;
Screw/guide mounting.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
P041-C
Brand:
SiRON
Code:
8504401400

Energy-saving power supply Economical Digital Display Switching Power P041-C Series 100W Switching Power Supply

Product Description

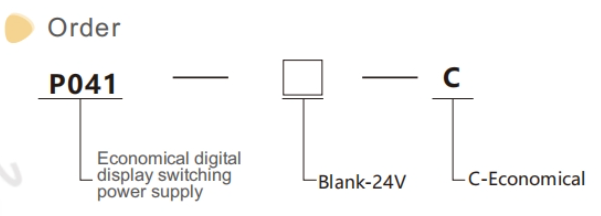

Order

4c167c7969c536eb0a94812ff9dc0089

Product Attributes

Model		P041-C
Power		100W
Input characteristic	The input range	90~132/180~264VAC(Switching type)220~380VDC
	Input Frequency	47~63Hz
	Suge cument(25ºC)	20A/110VAC 40A/220VAC
Output characteristic	The output wollage E adjustable±%	+24V±10%
	Hold time	13mS
	Srotchout polecion	Auto respond
	OveOunentPoedion	Overpower protection
	Models with an output voltage of 40VDC or less can be optionally equipped with 5V/3A output
Environmental characteristics	Operating Temperature Range	-15~50ºC,environment temperature
	Work degree of humidety soope	2 0 ~ 9 0 % R H , No condensation
	Sorage Temperature Range	-20~85ºC,environment temperature
	Vibration test	2G,10~500Hz,3 axes
Rapple and Notice		240mV
Load(urer)	Min	0A
	Rated	4.2A
	Max	4.2A
Eficilency		86%Ref.
Owervltage		31.4~34.7V
Lineliload adjustmentrate		±1%
Heat disslpation		Natural heat dissipation
Digital display		With digital display

Note:

1. Each output group can provide its maximum load, but the total load must not exceed the rated value.

2. The line adjustment rate is measured from low voltage to high voltage under the rated load.

3. The load regulation rate is tested from 20% to 100% of the rated load under a 220VAC input.

4. Ripple & Noise are tested using a 20MHz oscilloscope at 220VAC input and rated load with a 20 cm line length terminal test point.Parallel 0.1uF/630V metal capacitors and 47uF electrolytic capacitors for testing.

5. The efficiency was tested under 220VAC input and rated load conditions.

6. The holding time is tested under 220VAC input and rated load conditions.

7. For the models with optional monitoring output voltage display, the no-load power consumption is 1.5W and there is no energy-saving power supply Erp specification.

8. The adjustable range of output voltage is for testing under a load of more than 5% of the rated load.

9. This product features a metal casing. When installing, leave at least 1 centimeter of heat dissipation space on each side and at least 2 centimeters on each top and bottom to ensure its service life.

RELATED PRODUCTS

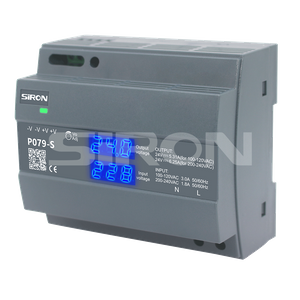

SiRON P079 Series 150W Digital Display Guide Power Supply
