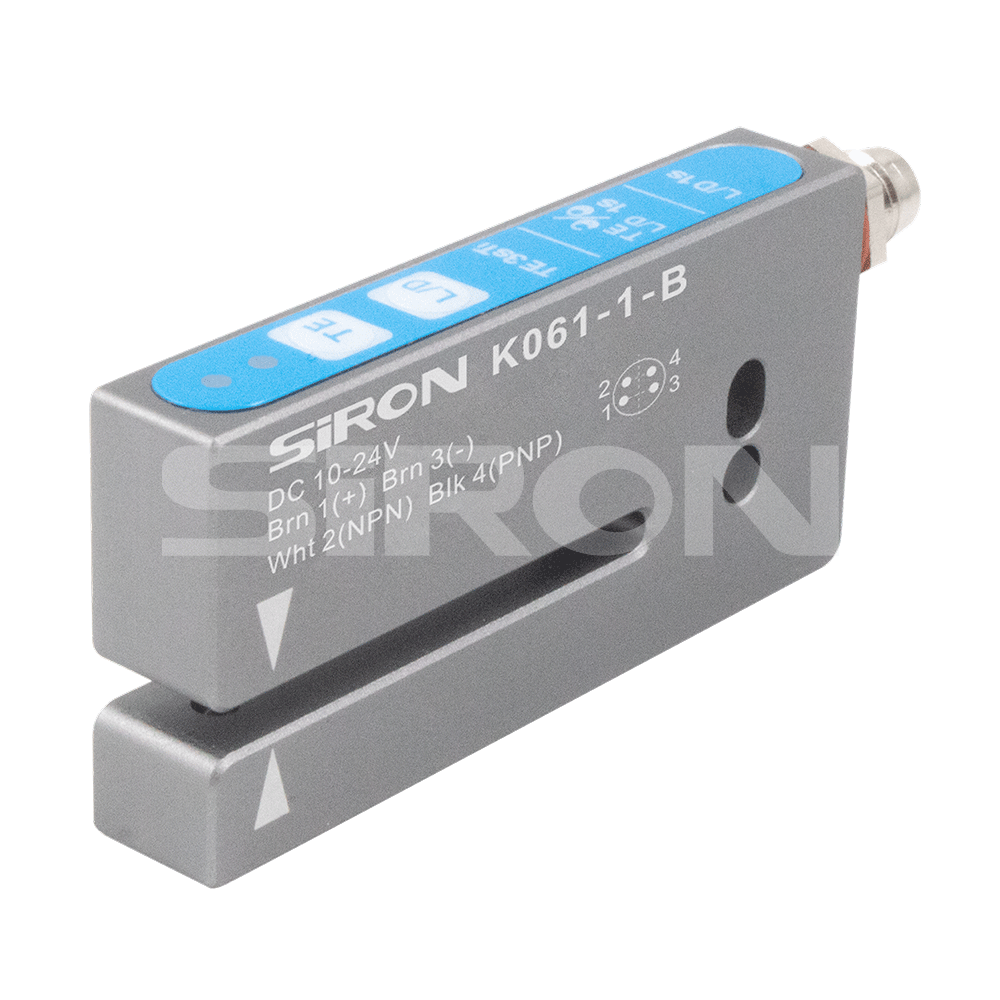

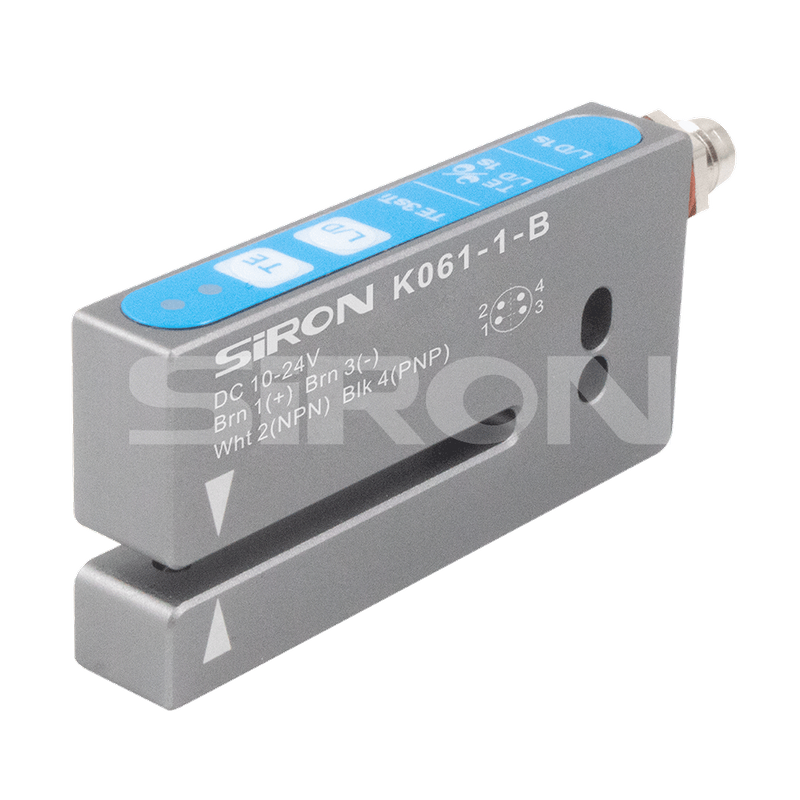

SiRON K061-1 Series Label Sensor

Name: SiRON K061-1 Series Label Sensor
Brand: SiRON
Rating: 5.0 (88 reviews)

Features:

The main body is made of aluminum alloy, with good sealing;
* Easy to debug and operate;
* NPN and PNP output mode in one;
* Strong anti-interference light, strong anti-electromagnetic interference ability;
* K061-1-A label paper with a detectable gap of 2mm;
* K061-1-A label paper with a detectable gap of 1mm;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K061-1 Series
Brand:
SiRON
Code:
9031809090

Label Sensor Light Interference Resistance Electromagnetic Interference Resistance Simple Operation

Product Description

About selection

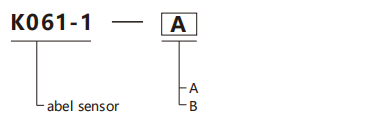

Selection examples: K061-1-A indicates the K061-1 series, Type A; K061-1-B indicates the K061-1 series, Type B.

Specifications

Name	Label sensor
Model	K061-1-A	K061-1-B
Appearance

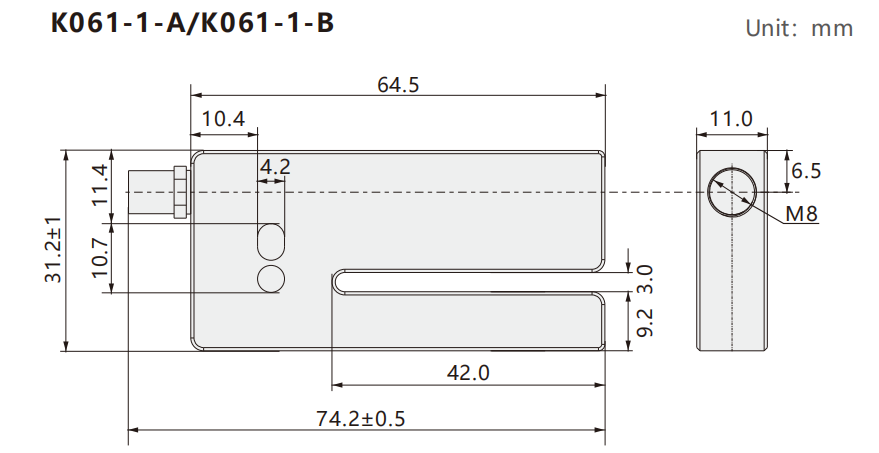

Slot length	42mm
Output mode	NPN/PNP
Operating voltage	10~30V DC
Load current	<100mA
Repeatability	Below 0.01mm
Voltage drop	<2.5V
Current loss	<20mA
Detection minimum gap	2mm	1mm
Response frequency	10000Hz	1000Hz
Response time	50μs
Output action	Normally Open (NO) and Normally Closed (NC) Switching
Pilotlamp	Yellow Light: Normally Open (NO)/Normally Closed (NC) Indicator Light (turns off in NO state, turns on in NC state); Red Light: Status Indicator Light
Protection	Output Short-Circuit Protection,Polarity Protection,Surge Protection
Ambient temperature	-25~+70℃
Ambient ilumination	Light-receiving Surface: Fluorescent or LED: below 3000 Lx; Incandescent Lamp: below 1000 Lx
Class of protection	IP65

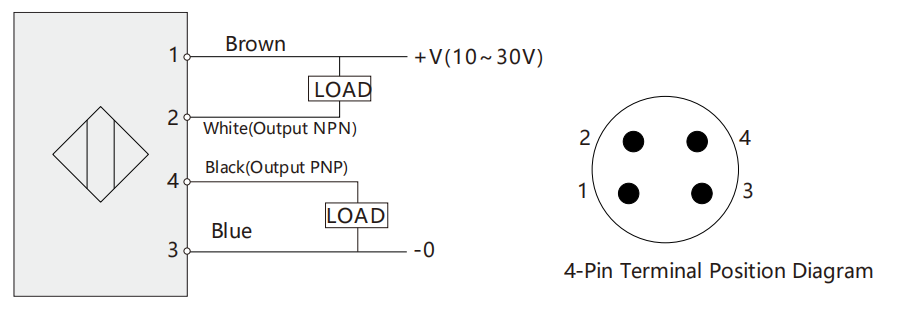

Connection mode	M8 4-pin
Shell matenal	Aluminum Alloy
Attachment	Straight Connector Cable (cable length: 2m)
