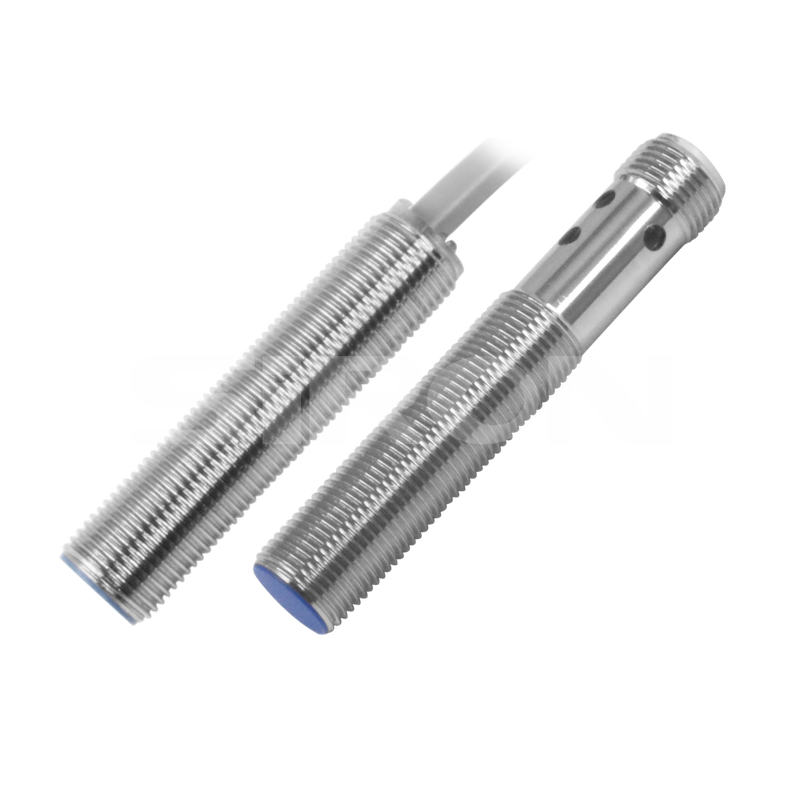

SiRON K044-3～K044-6 M12 Capacitive Proximity Switch

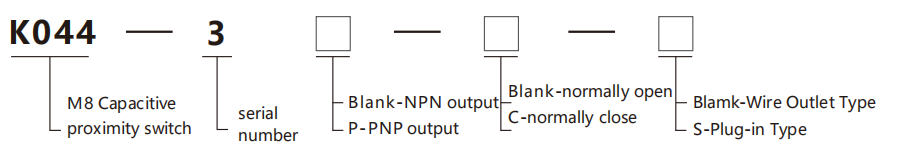

About selection

Selection example：K044-3 indicates the K044 series, serial number 3, with NPN output,                                                                                                         normally open state, Wire Outlet Type；

                                       K044-3P-S indicates the K044 series，serial number 3, with PNP output,

                                        normally open state, Plug-in Type.

Specifications

Name		M12 capacitive proximity switch
Model	NPN N.O	K044-3	K044-3-S	K044-4	K044-4-S	K044-5	K044-5-S	K044-6	K044-6-S
	NPN N.C	K044-3C	K044-3C-S	K044-4C	K044-4C-S	K044-5C	K044-5C-S	K044-6C	K044-6C-S
	PNP N.O	K044-3P	K044-3P-S	K044-4P	K044-4P-S	K044-5P	K044-5P-S	K044-6P	K044-6P-S
	PNP N.C	K044-3P-C	K044-3P-C-S	K044-4P-C	K044-4P-C-S	K044-5P-C	K044-5P-C-S	K044-6P-C	K044-6P-C-S
Wring Form		Wire Outlet Type	Plug-in Type	Wire Outlet Type	Plug-in Type	Wire Outlet Type	Plug-in Type	Wire Outlet Type	Plug-in Type

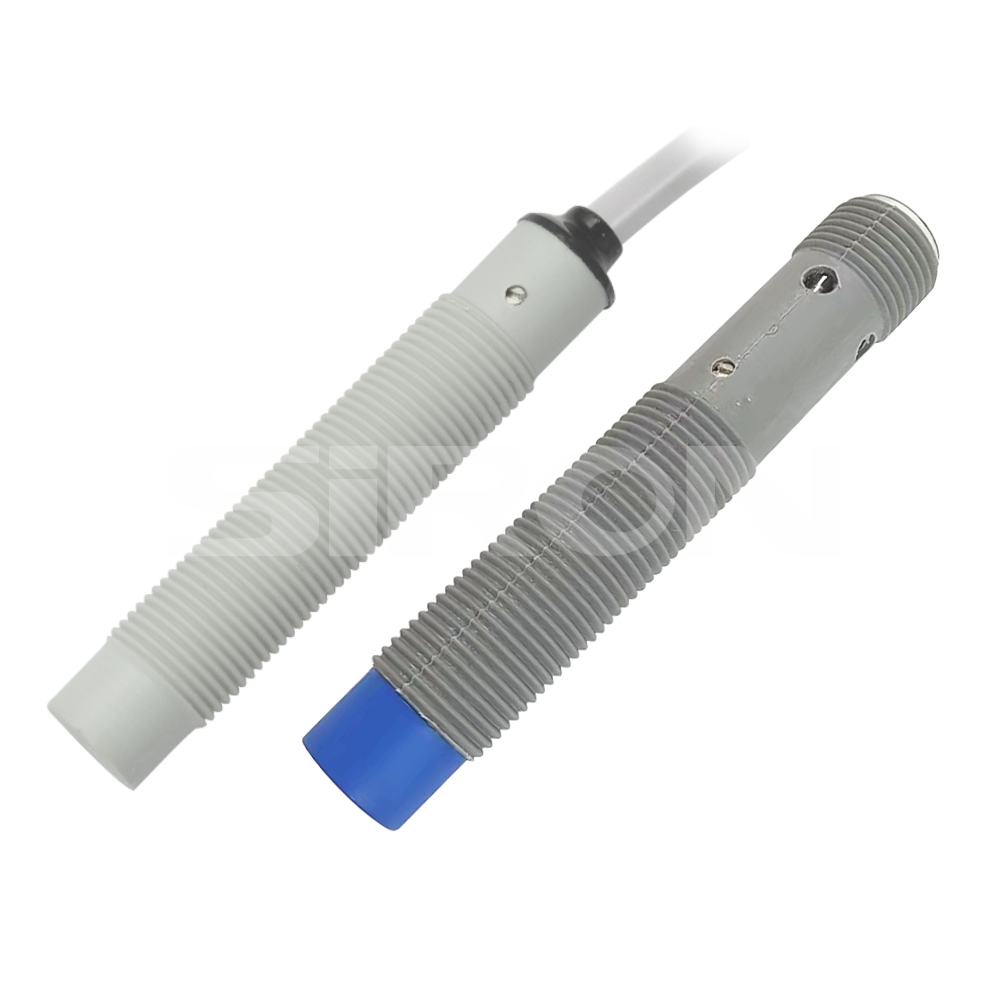

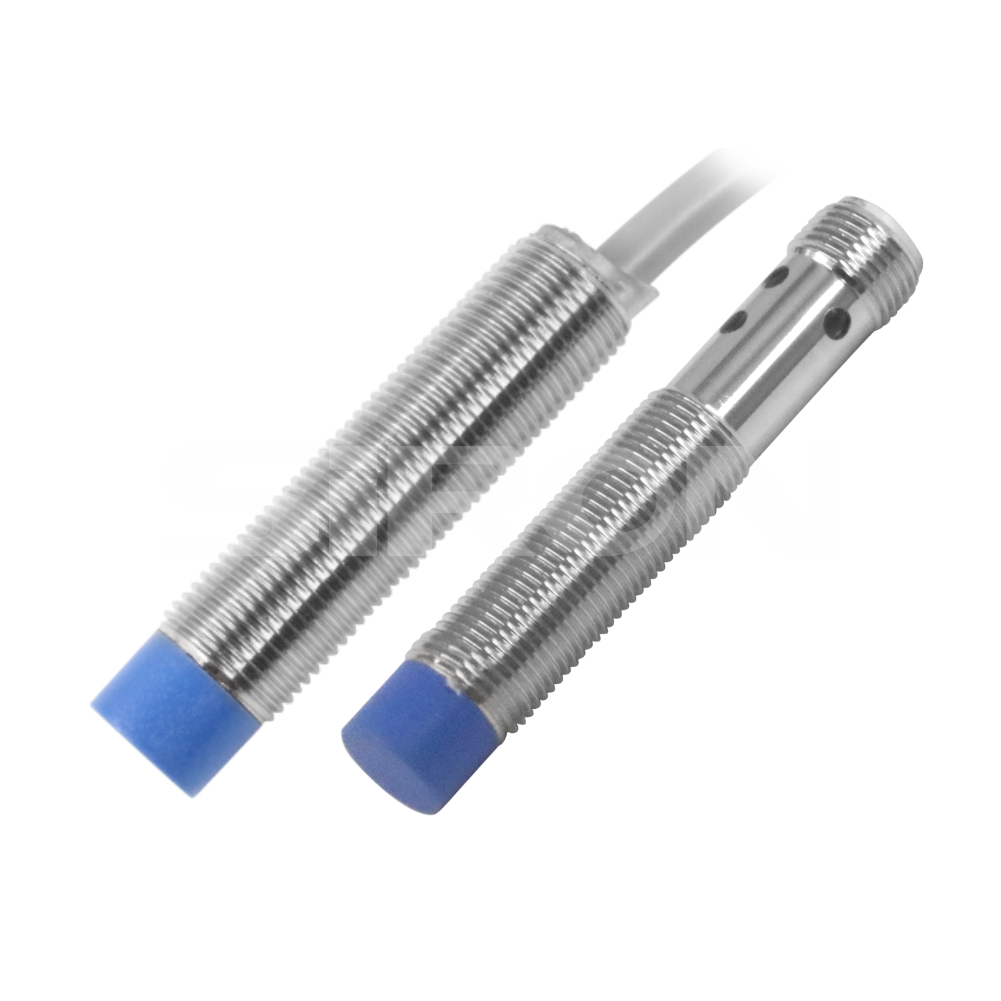

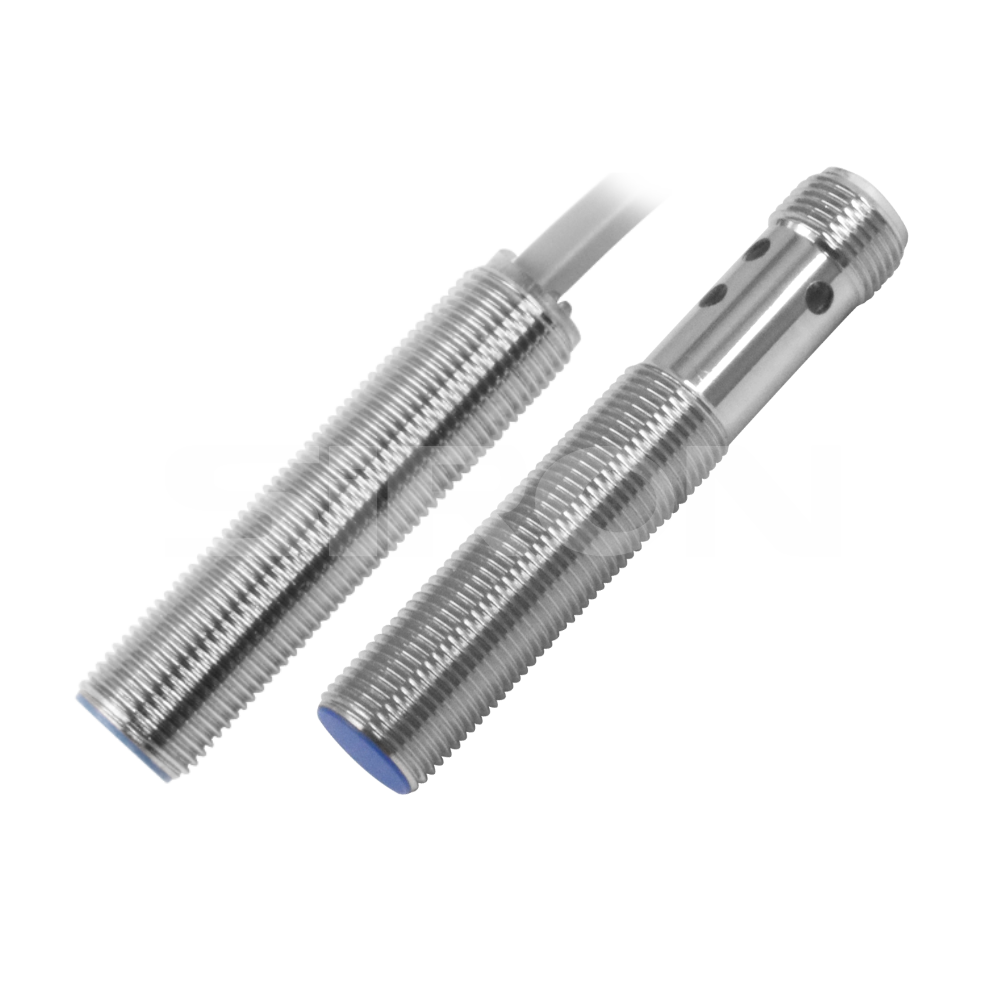

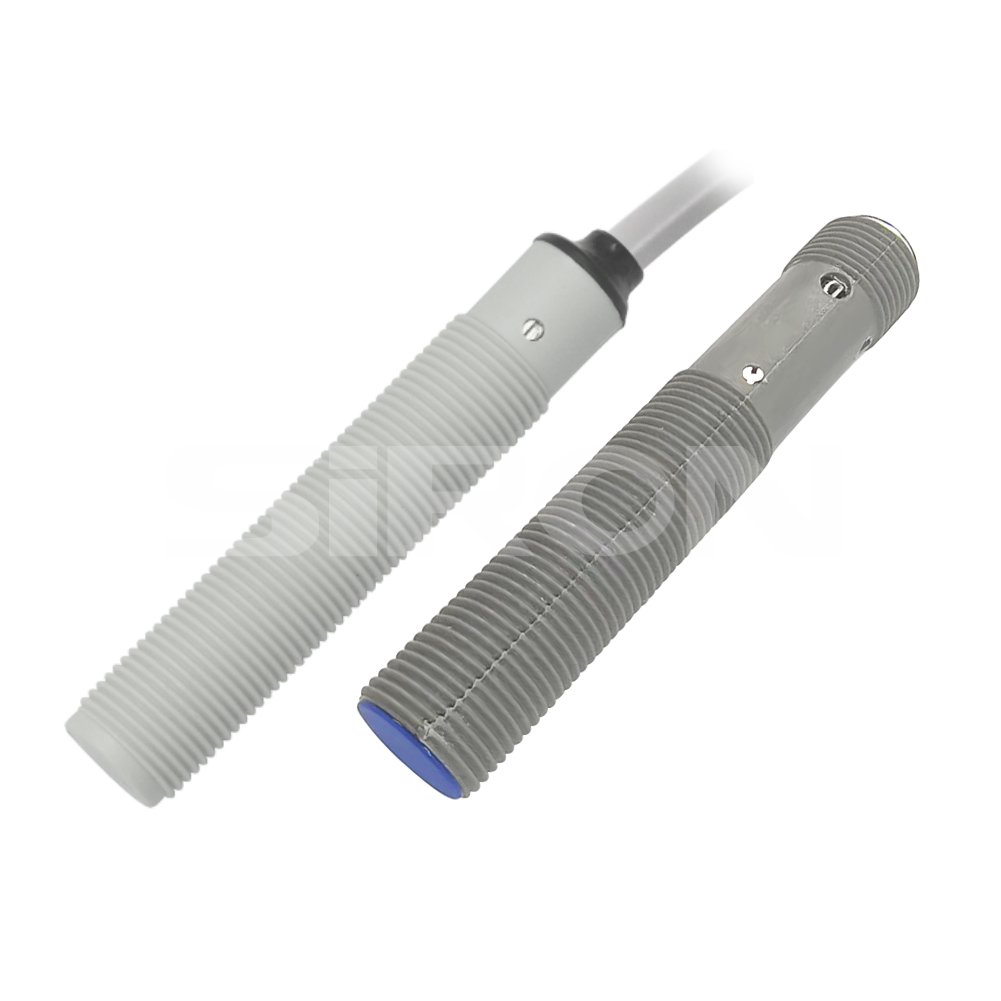

Appearance
Detection distance		3mm				6mm
Shell material		Nickel plated brass		PBT		Nickel plated brass		PBT
Installation		Flush installation				Non-flush installation
Thread		M12×1mm
Operating Voltage		10～30V DC
On-off level		100Hz
Pressure drop		<2VDC
Load current		200mA
No-load current		<10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		＜5%(Sr)
Ambient temperature		-25～70℃
Enclosure rating		IP67
Sensing surface material		PBT
Cable		Wire Outlet Type：PVC cable；3×0.35mm² ；Plug-in Type：M12 connector
Cable length		2M

Example

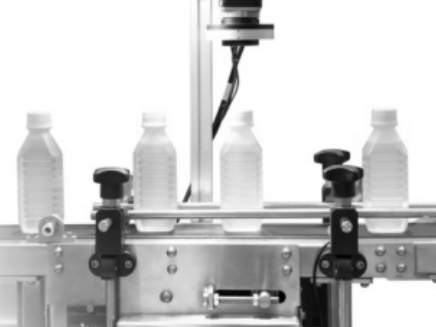

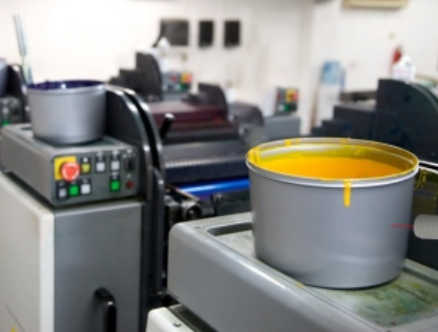

Detection of pigment position                                             Detection of the presence or absence of bottled                                                                                                                                     beverages
