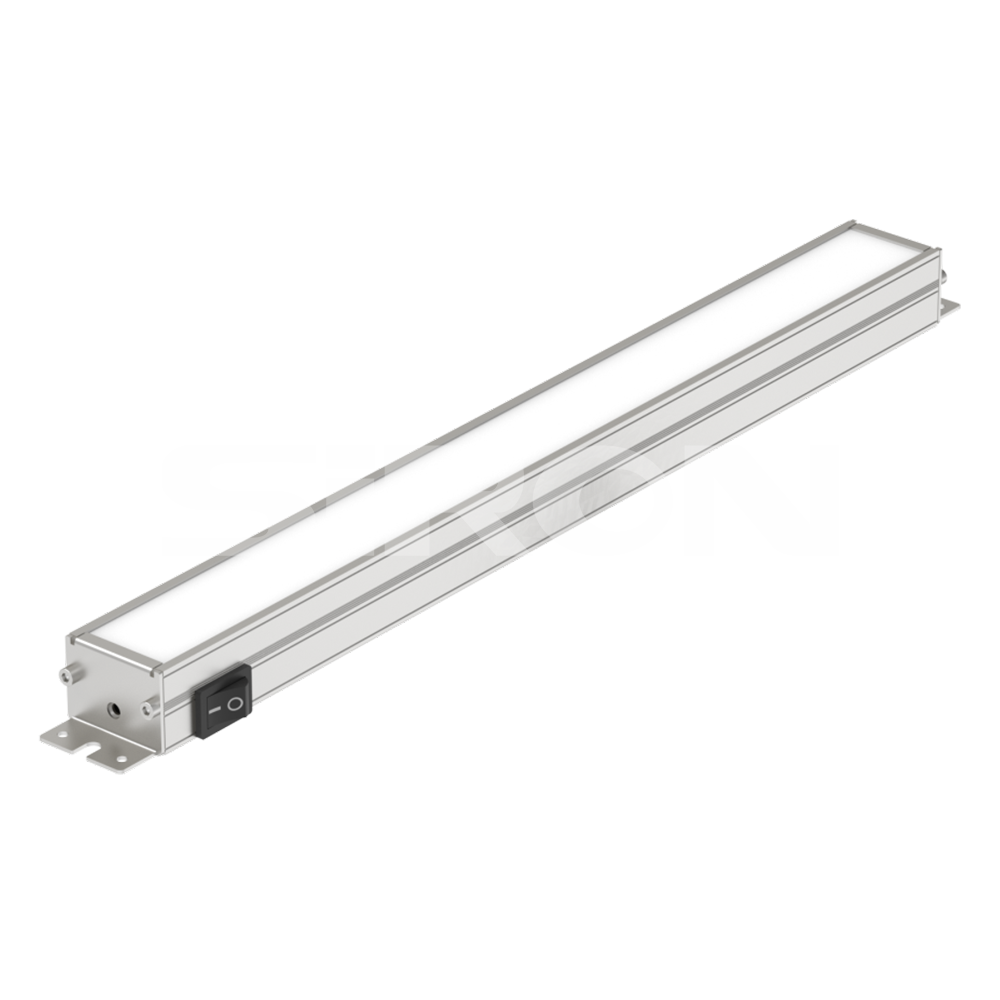

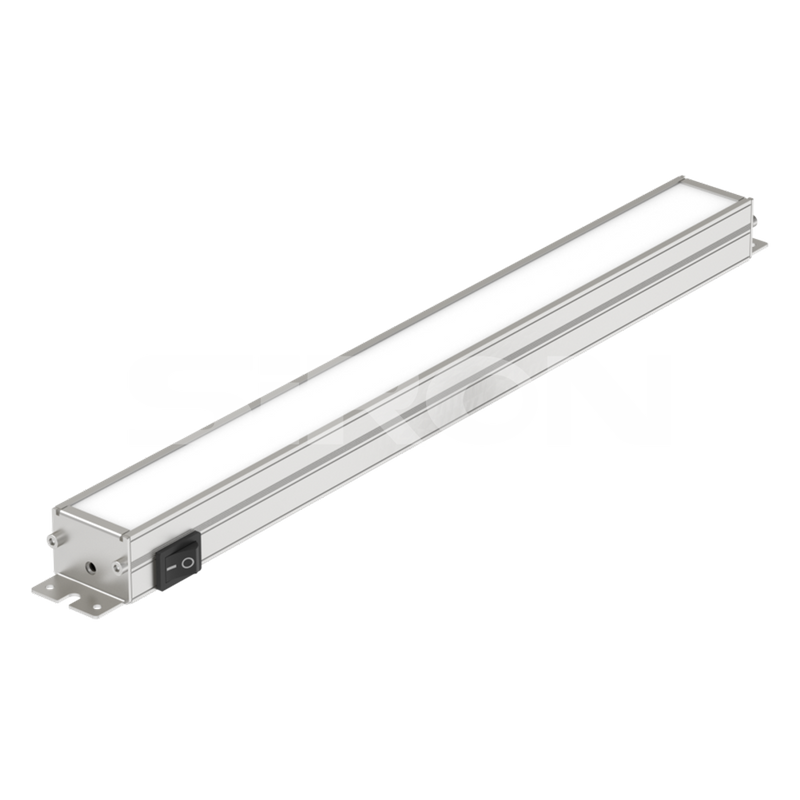

D302-B Series
SiRON
9405410000
ABOUT SELECTION
|
| ||

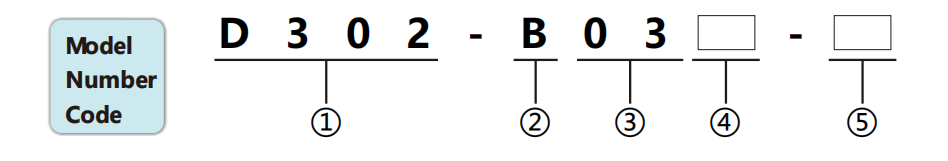

| Type analysis | ||
| ① | Flat explosion-proof lamp series | D302 |
| ② | Appearance | B |
| ③ | Power | 03:3W 05:5W 10:10W (For other power ratings, please refer to the "Dimension Table" in the outline drawing.) |
| ④ | Light color | Blank: 6000K to 6500K pure white WW:4000K~4500K warm white |
| ⑤ | Voltage | Blank:24V DC 220:220V AC |
Note: The standard cable length is 1500mm.If you need a customized size, please contact our sales department.
Specifications
Shell | Silver aluminum alloy | Actuate | Dc without drive/ AC with drive |
Light-transmitting material | Milky white P C | Class of protection | IP20 |
Rated voltage | 24V DC、220V AC | Color rendering index | >80 |
Working condition | Continuous Illumination | Standard wining length | Standard configuration: 1500 m m |
Switch | Yes | Service life | 50000h |
Temperature | 6000K ~ 6500K pure white /4000K ~ 4500K warm white | Ambient temperature | -25~55℃ |
