D245 Series
SiRON
9405410000
ABOUT SELECTION
|
| ||

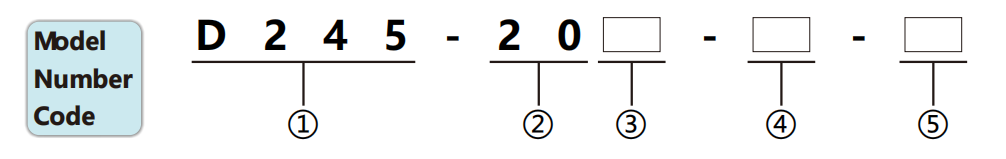

| Type analysis | ||
| ① | Flat explosion-proof lamp series | D245 |
| ② | Power | 12:12W 32:32W (For other powers, please refer to the size table) |
| ③ | Light color | Blank: 6000K to 6500K pure white WW:4000K~4500K warm white |
| ④ | Voltage | Blank:24V DC |
| ⑤ | Connection method | Blank: Direct output M12: Output from M12 connector |
Specifications
Model | D245-20 | D245-32 | D245-50 | D245-45 | D245-70 |

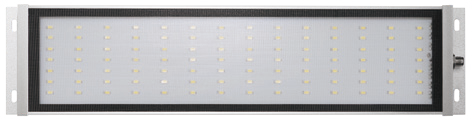

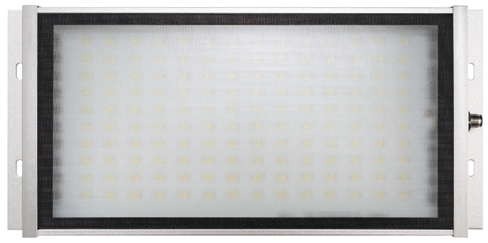

Appearance | ![]() ![]() | ![]() ![]() | |||
Shell | Silver aluminum alloy | ||||
Glass material | Mesh tempering | ||||
Rated voltage | 24V DC | ||||
Rated current | 1.33A@32W | ||||
Color temperature | 6000K~ 6500K pure white / 4000K ~ 4500K warm white | ||||
Drive | Dc without drive | ||||
Luminaire of Protection | IP67 | ||||
Class of Protection | Ⅲ | ||||
Color rendering index | >80 | ||||
Standard wiring length | Standard configuration: 1500 m m | ||||
Service life | 50000h | ||||
Ambienttemperature | -25~55℃ | ||||
