SiRON D201 Series Tubular Explosion-proof Working Light

Name: SiRON D201 Series Tubular Explosion-proof Working Light
Brand: SiRON
Rating: 5.0 (3 reviews)

Features:

*High-quality chip LED light source imported from the United States, with low power consumption, high performance and long life.

*The light is evenly distributed, the color rendering is strong, and the lighting effect is good.

*Waterproof, oil-proof, corrosion-proof and explosionproof functions.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

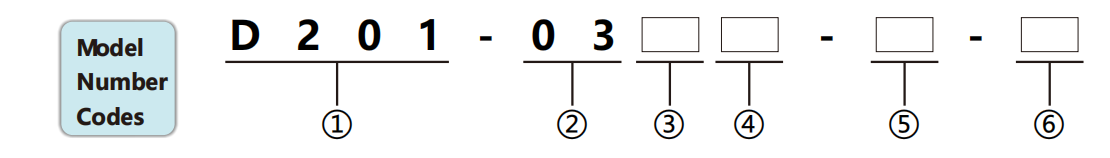

Type analysis
①	Tubular explosion-proof lamp series	D201
②	Power	03：3W 05：5W (For other powers, please refer to the size table)
③	Bracket	Blank: B bracket C: C bracket
④	Light color	Blank: 6000K to 6500K pure white WW: 4000K - 4500K warm white
⑤	Voltage	Blank: 24VAC/DC 220:220V AC
⑥	Connection method	Blank: Direct output M12: Output from 12 connector

Specifications

Bracket	B bracket lamp	C bracket lamp
Appearance
Rated voltage	24V AC/DC、220V AC
Color temperature	6000K to 6500K pure white /4000K to 4500K warm white
Drive	Ac/DC universal drive/AC drive
Luminaire of Protection	IP67
Class of Protection	I or Ⅲ
Pipe diameter	φ45mm
Color rendering index	>80
Standard wiring length	Standard configuration: 1500 m m
Service life	50000h
Ambient temperature	-25~55℃
