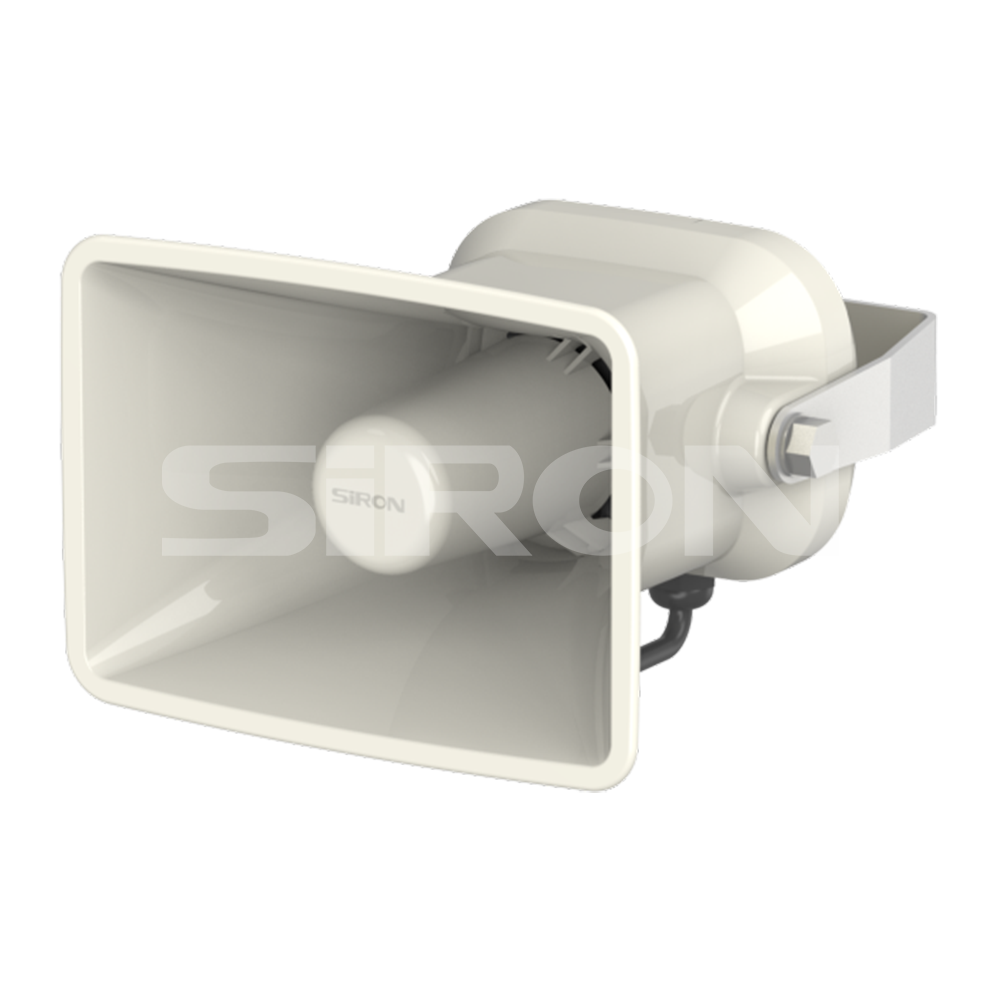

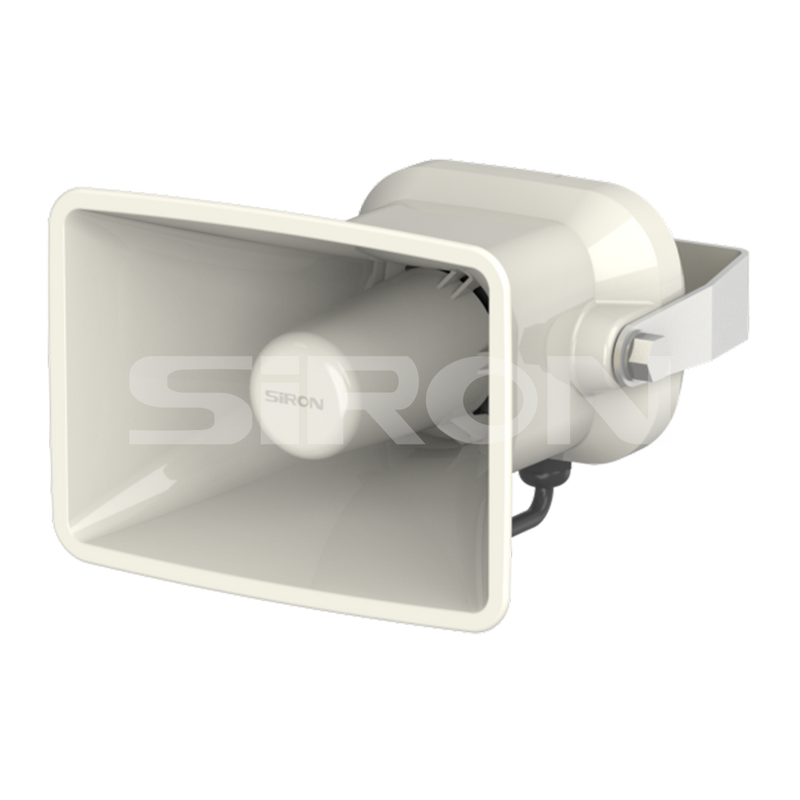

SiRON D194-3 Rs485 Signal Speaker - Large Speaker

Name: SiRON D194-3 Rs485 Signal Speaker - Large Speaker
Brand: SiRON
Rating: 5.0 (78 reviews)

Features:

*Can control 255 audio playback, output clear and beautiful music sound.

*Enter the trigger signal to start playing, disconnect the trigger signal to stop playing.

*Adjust the volume through the knob or RS485 protocol, support MP3 and WAV format files.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

Specifications

The material	ABS	RS485 byte spacing	7
Rated voltage	15~36V DC	RS452 packet spacing	More than 3 m s
Rated current	0.7A	Standard wiring length	Standard configuration: 1.5 0 0 m m
Control method	R S 4 8 5 agreement	Device ID	0x01 to 0xF E(Factory setting 0x01) OxFF is the broadcast ID
Protection level	IP23	Device ID
Volume adjustment method	Internal knobs or RS485 agreement	RS485 communication settings	Baud rate 9600bps, 19200bps, 38400bps 115200bps UART data frames: 8, N, 1 Flow control: None
Number of audio sources	255
Maximum volume	100dB
Service life	50000h
Environment temperature	-25~50℃	Audio source playback mode	1. One play, each time the play command is received from Start playing 2. Play it repeatedly and receive the same message during the playback process The playback command of the audio segment will be ignored
RS485byte spacing	Less than 1 m s
Power-on initialization time	3 second
