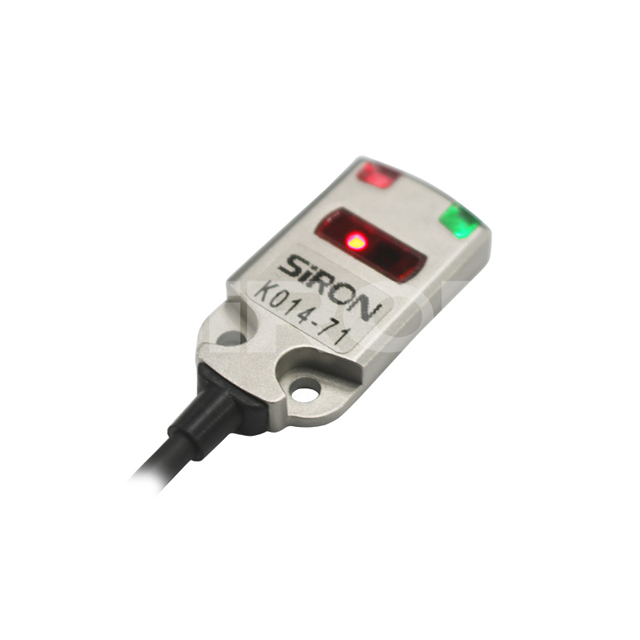

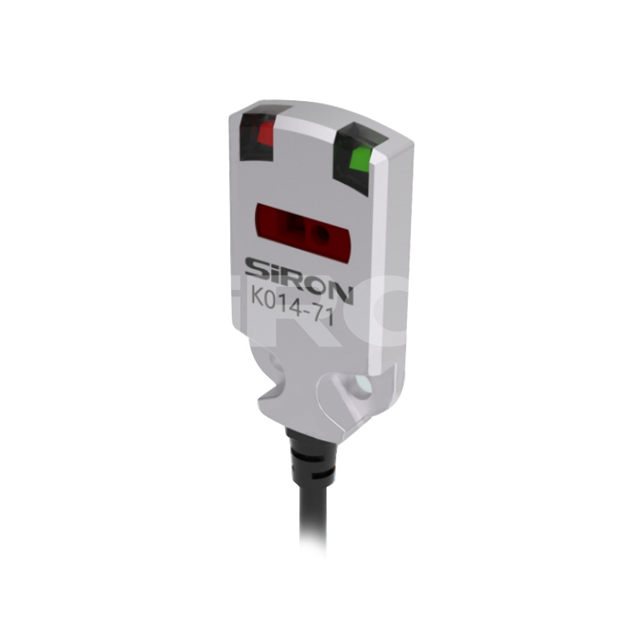

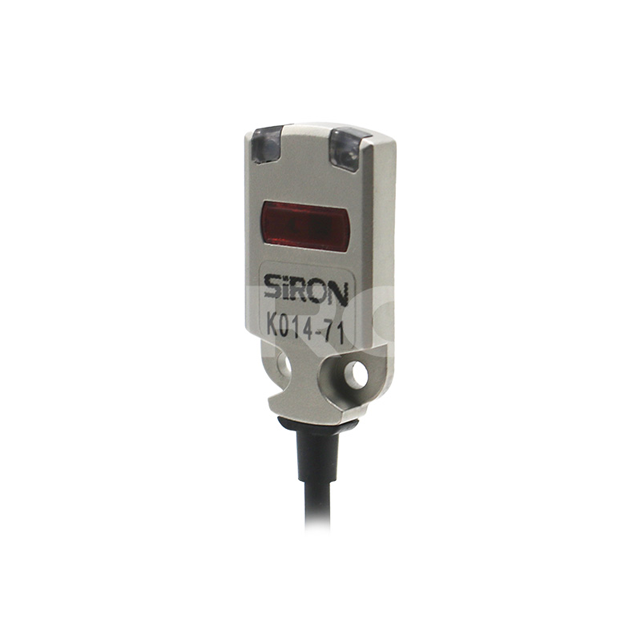

The K014-71 Photoelectric Sensor offers high sensitivity K014-71 Photoelectric Sensor capabilities, enabling it to detect even small or low-contrast objects accurately in various industrial environments. This sensor provides a fast response K014-71 Photoelectric Sensor feature, ensuring rapid signal output to support real-time process control and automation efficiency.
Thanks to its compact size K014-71 Photoelectric Sensor, it can be easily installed in tight or limited spaces without sacrificing detection performance. The sensor boasts high precision K014-71 Photoelectric Sensor performance, delivering consistent and reliable detection results with minimal deviation, which is essential for high-standard manufacturing processes.
Designed with user convenience in mind, the easy installation K014-71 Photoelectric Sensor enables quick setup and minimal downtime during maintenance or replacement. Moreover, it is built to industrial grade K014-71 Photoelectric Sensor standards, meaning it offers durable construction and stable operation under harsh industrial conditions, including temperature fluctuations, dust, and moisture.
Example
Confirm the arrival of the electronic printed circuit board
Confirm the presence or absence of the solar substrate
Specifications
Name | Photoelectric sensor (ultra-thin type)
| |
Model | NPN | K014-71 |
PNP | K014-71P | |
Types of
| reflection-type | |
Appearance |
| |
Shape | Flat | |
Detection distance
| Background suppression distance:30+-5mm | |
voltage | 12-30VDC with 10%ripple current(P-P) | |
Current consumption
| 19mA | |
Normally open normally closed mode
|
It can be selected as ON when light enters or ON when light is blocked | |
Operation mode (output)
|
LIGHT-ON/NC | |
Light spot diameter
| Less than φ5mm(when 30mm) | |
light source
|
Red LED(650nm) | |
Response time
|
≤1ms | |
Cable length | 2M | |
Indicator
| Output indicator light (red)Stable operation indicator light(green) | |
IP level
| IP67 | |
Control output | The collector of NPN is open,and the collector of PNP is open at 30VDC and 50mA respectively; | |
Residual voltage:Below 1.5V when below 30mA,and below 2.0V when between 30 and 50mA | ||
Leakage current: When the load resistance is 3kΩ, it is below 0.3mA; when the load resistance is 1kΩ, it is below 0.5mA; when the load resistance is 0.2kΩ, it is below 1.5mA | ||

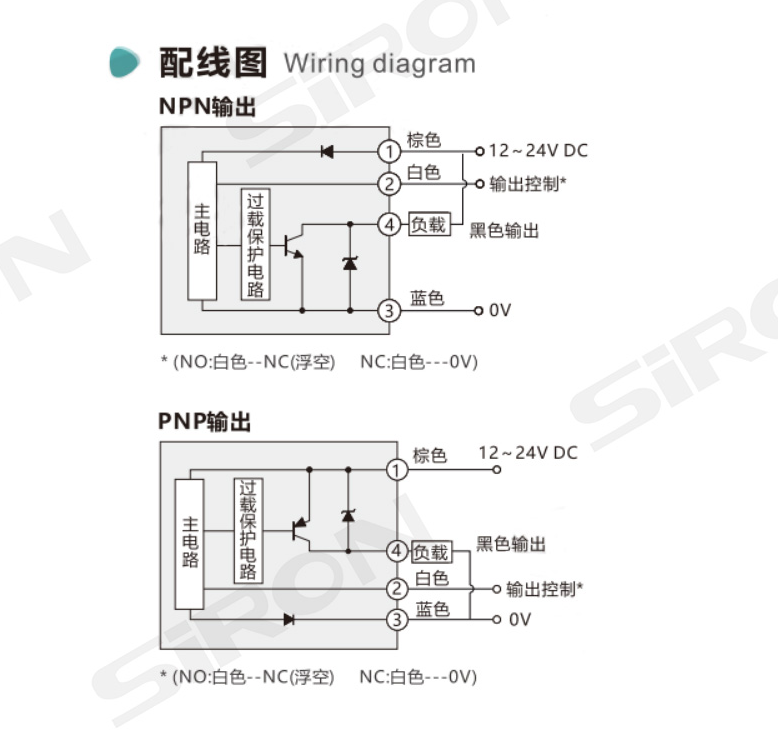

Wiring Diagram

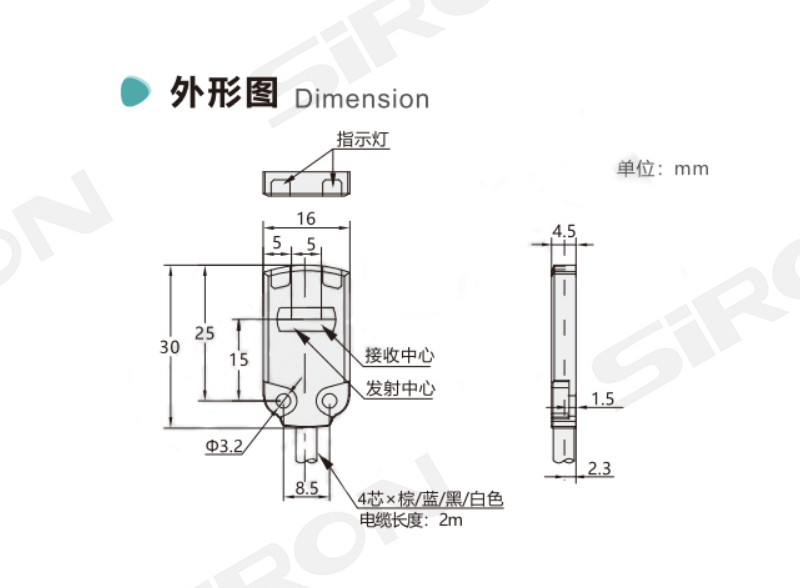

Dimension
